Ronstan

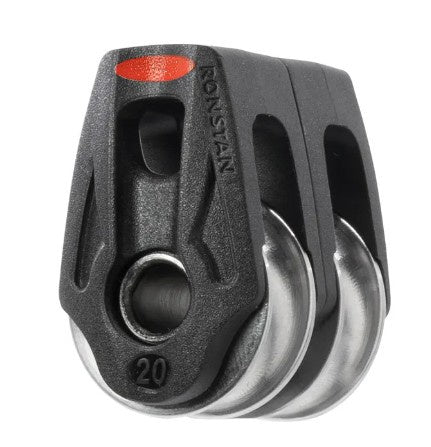

RONSTAN SERIES 20 HIGH LOAD DOUBLE ORBIT BLOCK , LASHING , BECKET OPTION
RONSTAN SERIES 20 HIGH LOAD DOUBLE ORBIT BLOCK , LASHING , BECKET OPTION
Regular price
$127.47 AUD
Regular price
Sale price
$127.47 AUD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Double sheave high load ball bearing lashing block.
FEATURES
Ideal for higher load applications.
Specifications
| Type of Block | Double |
|---|---|
| Sheave diameter (mm) | 20mm |
| B.L. (kg) | 900 |
| M.W.L. (kg) | 450 |
| Max. Rope diameter (mm) | 6 |
| Weight (g) | 26 |
| Notes: | Both the MWL and BL are dependant on the strength of the line used to lash the block through the central hub. |
Lashing line must pass through the hub with a tight splice in the head or cross over before lashing to a fixing point.
HHL sheave ideal for higher load applications.
Applications
- Control lines
- Leech lines & cunninghams
- Cascading vangs
- Kite bridles
Materials
- HHL sheave and bearing race: Grade 2205 stainless steel
- Ball bearings: Grade 304 stainless steel
- Frame/cheeks: Toughened nylon
