GEMLUX FLUSH MOUNT FRICTION HINGE 2.75" X 1.5" - 4 SCREW

GEMLUX FLUSH MOUNT FRICTION HINGE 2.75" X 1.5" - 4 SCREW

Regular price
$73.91
Sale price
$73.91
Regular price
$80.00
Sold out
Unit price
per
Tax included.

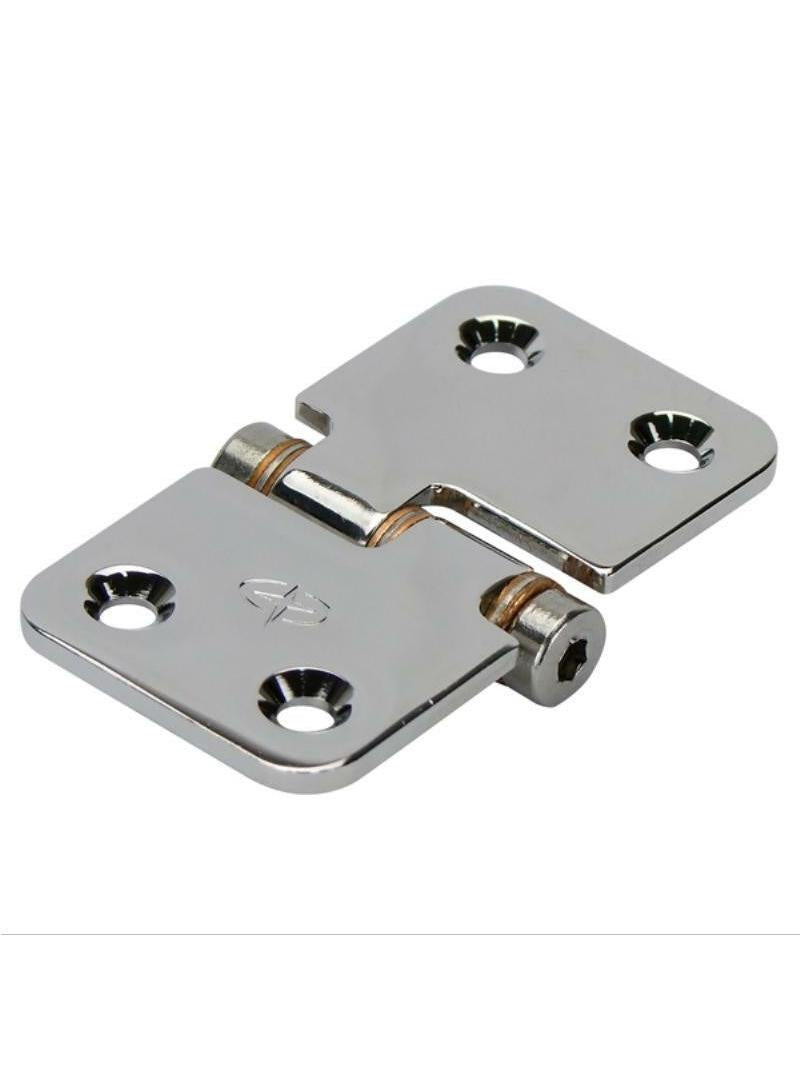

Gemlux Flush Mount Friction Hinge 2.75" x 1.5" that moves through 100 degrees.

  • Sold in singles for custom installations.
  • Designed to eliminate the need for gas struts or hatch springs in some applications.
  • Friction is built into the barrel of the hinge using patented technology from Gemlux.
  • Friction hinges are pre-tensioned and SHOULD NOT BE ADJUSTED.
  • If the hatch is large and still closes under it own weight consider using more than two hinges.
  • Holds open hatches, live well lids, radio boxes and many more applications.
  • No tooling required for mounting.
  • Maximum opening angle of 180°..
  • 304G stainless steel.

Note:

  • For best results we recommend using bolts washers, nylon nuts and 3M 5200 Marine Adhesive Sealant when installing friction hinges.
  • DO NOT ATTEMPT TO ADJUST THE TENSION OF THE FRICTION HINGES IN ANY WAY.

PART NUMBER LENGTH WIDTH MOUNT HOLES MOUNT SCREWS LEAF THICKNESS BARREL HEIGHT SPLIT
GEM-38610 69mm 38mm 4 5mm c/s 4mm 11.3mm 34.5mm / 34.5mm
