YELLOW PIN RATED BOW SHACKLE - 8MM - RATED 750Kg
YELLOW PIN RATED BOW SHACKLE - 8MM - RATED 750Kg
Regular price
$4.28 AUD
Regular price
$4.75 AUD
Sale price
$4.28 AUD
Unit price
/
per
Taxes included.
Couldn't load pickup availability

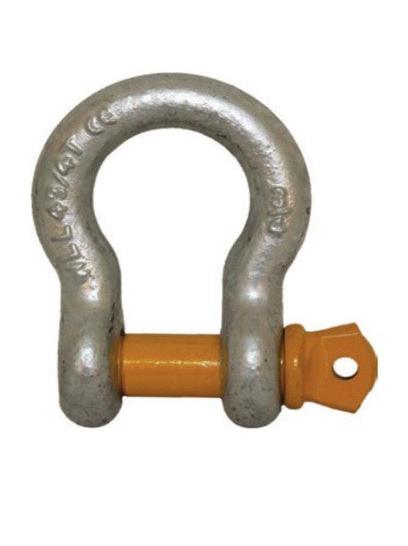

Forged steel US type hot dipped galvanised shackles with a yellow pin.
They have the working load limit stamped into the body of each shackle and they are 6x rated meaning they have a built-in safety factor of 6 to 1.
All these shackles have a larger pin diameter than the bail diameter.
The size stamped into them is the bail diameter in inches and the working load limit stamped into each shackle should not be exceeded. CE mark is stamped into each shackle.
| PART NUMBER | BAIL DIAMETER | PIN DIAMETER | WORKING LOAD |
BREAKING LOAD |
|---|
| RWB-6609 | 8mm | 10mm | 750kg | 4500kg |
