R W Basham

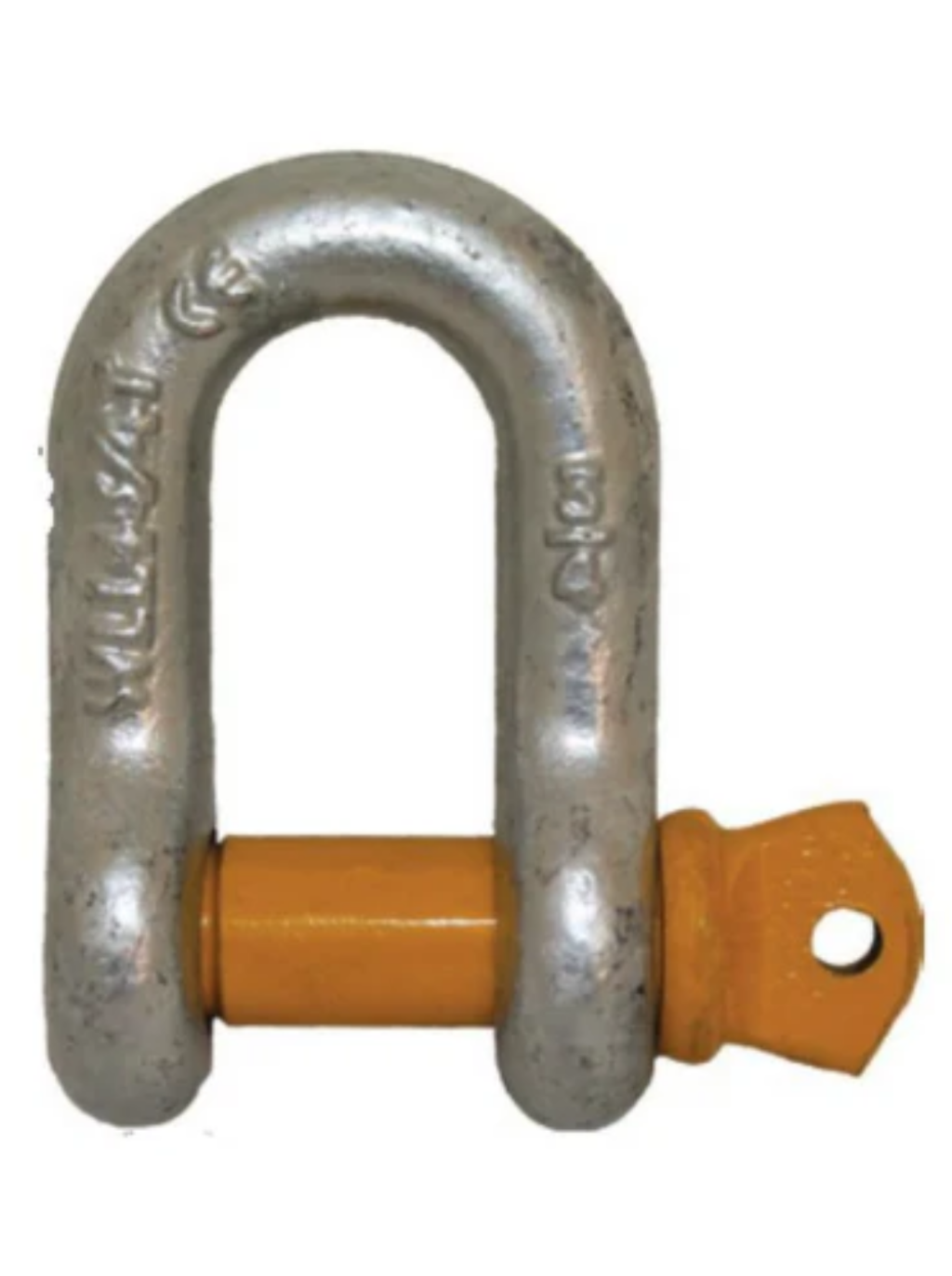

YELLOW PIN RATED DEE SHACKLE - 6MM
YELLOW PIN RATED DEE SHACKLE - 6MM
Regular price
$3.56 AUD
Regular price
$3.95 AUD
Sale price
$3.56 AUD
Unit price
/
per
Taxes included.
Couldn't load pickup availability

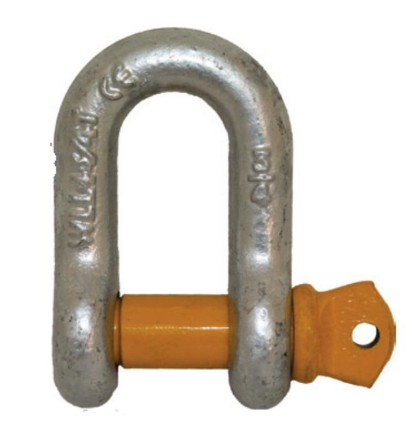

Forged steel US type hot dipped galvanised shackles with a yellow pin.
They have the working load limit stamped into the body of each shackle and they are 6x rated meaning they have a built-in safety factor of 6 to 1.
All these shackles have a larger pin diameter than the bail diameter.
The size stamped into them is the bail diameter in inches - see size code below - and the working load limit stamped into each shackle should not be exceeded. CE mark is stamped into each shackle.
| PART NUMBER | BAIL DIAMETER | PIN DIAMETER | WORKING LOAD | BREAKING LOAD |
|---|---|---|---|---|
| RWB-6600 | 6mm | 8mm | 500kg | 3000kg |
