SINOX MARINE EYE BOLT- 316 STAINLESS - COLLARED 10x100mm
SINOX MARINE EYE BOLT- 316 STAINLESS - COLLARED 10x100mm
Regular price
$11.21 AUD
Regular price
Sale price
$11.21 AUD
Unit price
/
per
High quality eyebolt made from 316 grade stainless steel with a heavy duty cast eye.
For use as a lifting eye bolt, as a bow eye or other applications.
Metric thread. Supplied with stainless washer and hex nut.

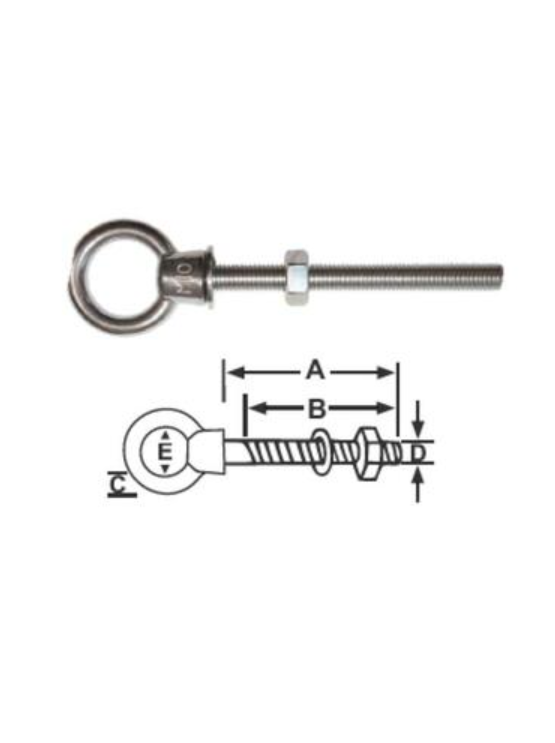

PART NUMBER | D SIZE | A MM | B MM | C MM | E MM | SUGGEST WORKIN LOAD |
---|---|---|---|---|---|---|
RWB-2585 | M6 | 60 | 54 | 5 | 16 | 275kg |
RWB-2586 | M8 | 80 | 70 | 6 | 19 | 425kg |
RWB-2587 | M10 | 100 | 88 | 8 | 24 | 650kg |
RWB-2588 | M12 | 120 | 105 | 10 | 30 | 850kg |
