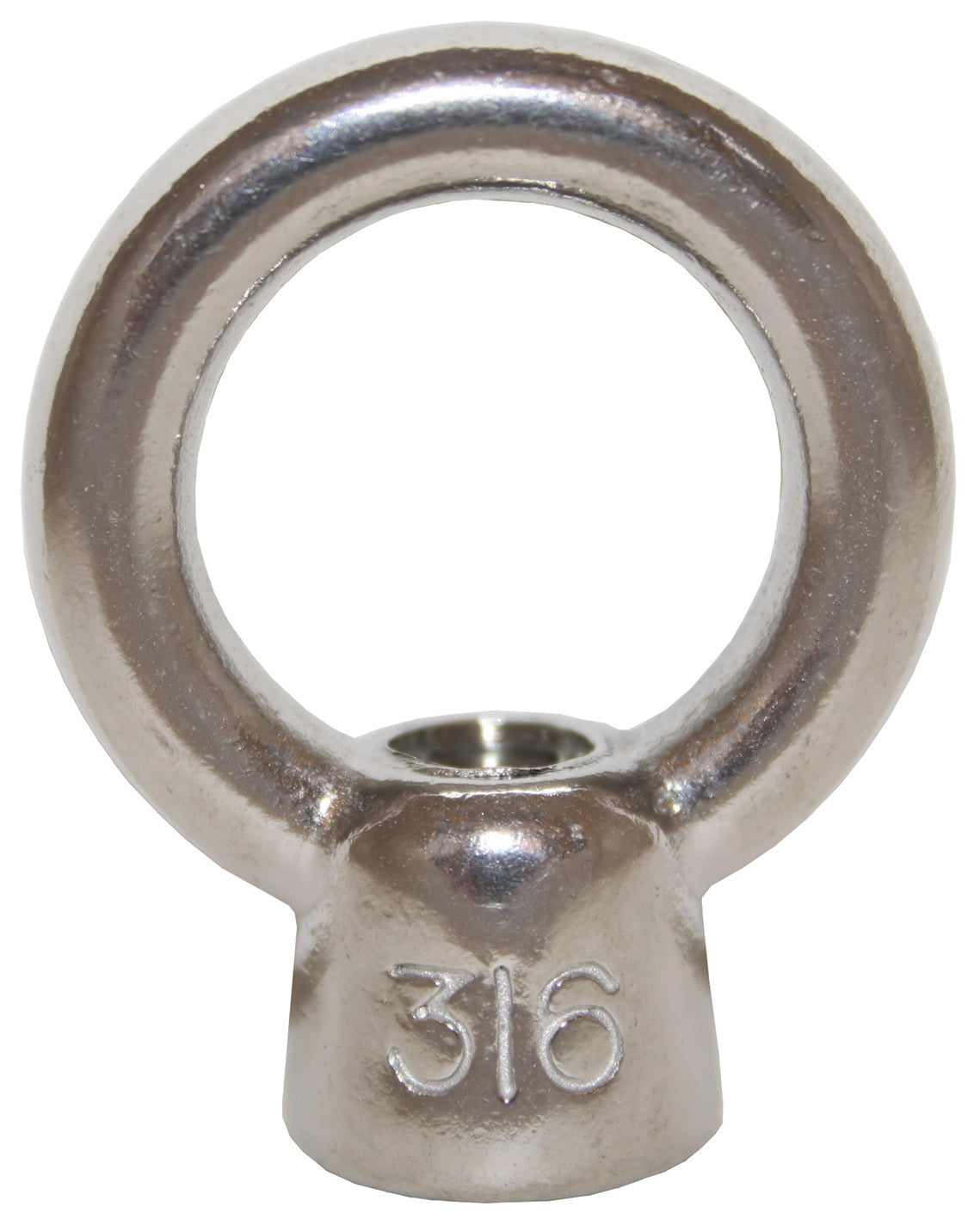

Cast 316 grade stainless steel with a female metric thread.
For balustrade ends, lifting purposes and other applications.

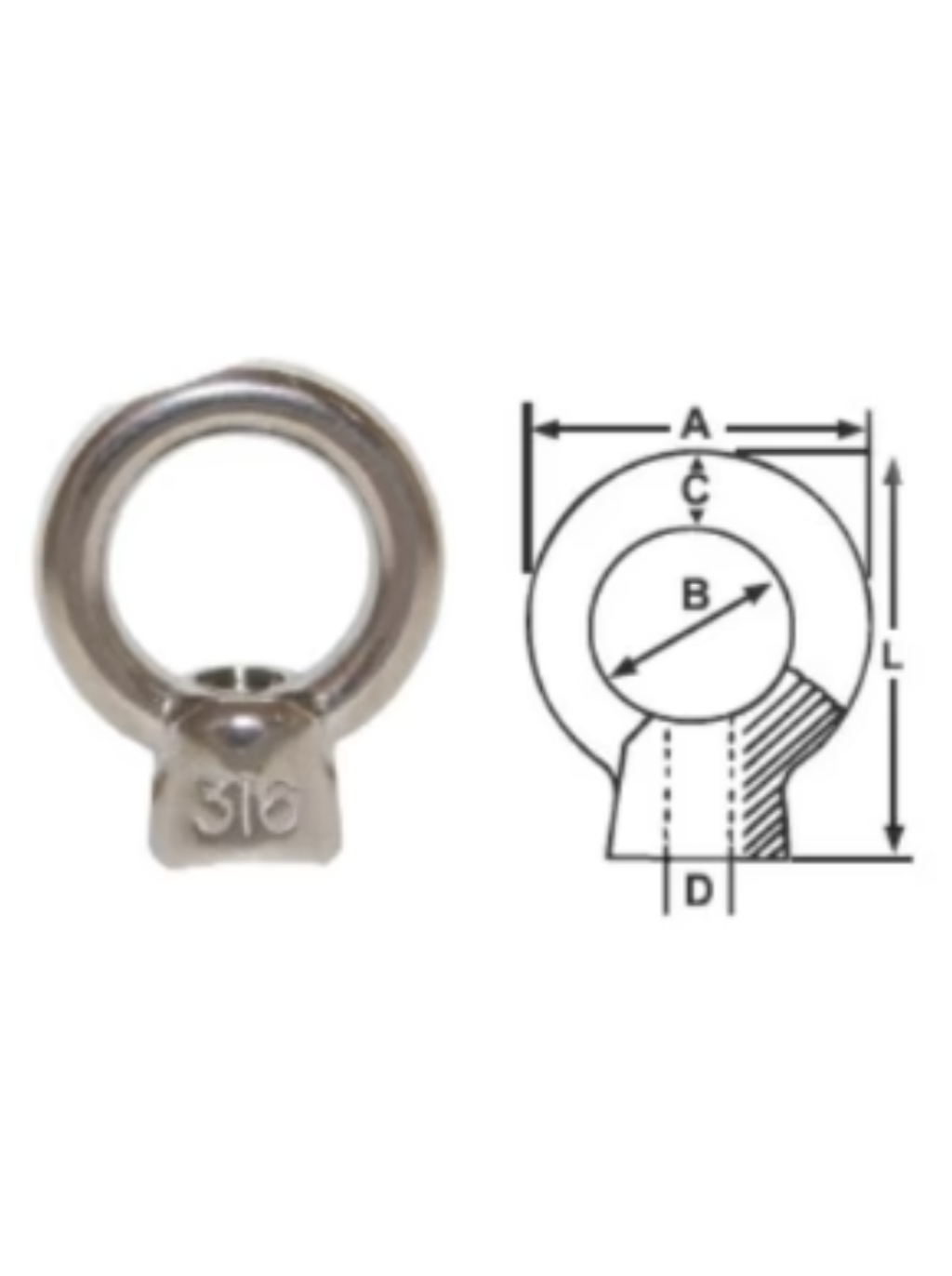

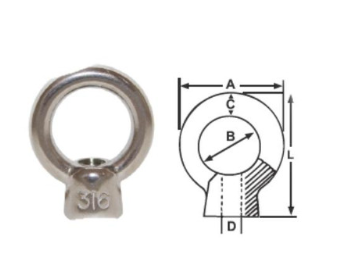

| PART NUMBER | SIZE (D) | A | B | C | L | SUGGESTED WORKING LOAD |
|---|---|---|---|---|---|---|
| RWB-2520 | M6 | 26mm | 15mm | 5mm | 30mm | 275kg |
| RWB-2521 | M8 | 32mm | 20mm | 6mm | 39mm | 325kg |
| RWB-2522 | M10 | 41mm | 25mm | 8mm | 45mm | 650kg |
| RWB-2523 | M12 | 50mm | 30mm | 10mm | 57mm | 850kg |
