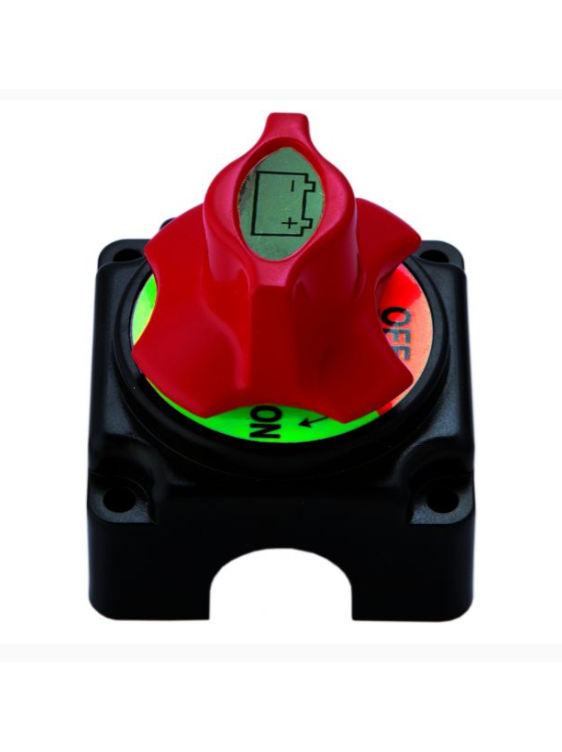

Very compact battery selector switch with a high amp rating. Made from nylon with silver plated brass studs and other marine grade non-corrosive metals. Can be surface mounted or flush mounted into a panel by removing the back casing.
- 360 degree turn knob for battery 1, 2, both or off
- Compact size 72mm x 72mm x 87mm
- 250 amp continuous rating, 350 amp intermittent @12v
- Vapour tight and ignition protected
- Can be surface or flush mounted
- Luminous label for low light vision
- Made from non-corrosive materials
- Suitable for both 12 & 24 volt systems
| PART NUMBER | SUITABLE VOLTAGE | BASE DIAMETER | HEIGHT |
|---|---|---|---|
| RWB-2164 | 12 or 24v | 72 x 72mm | 87mm |
