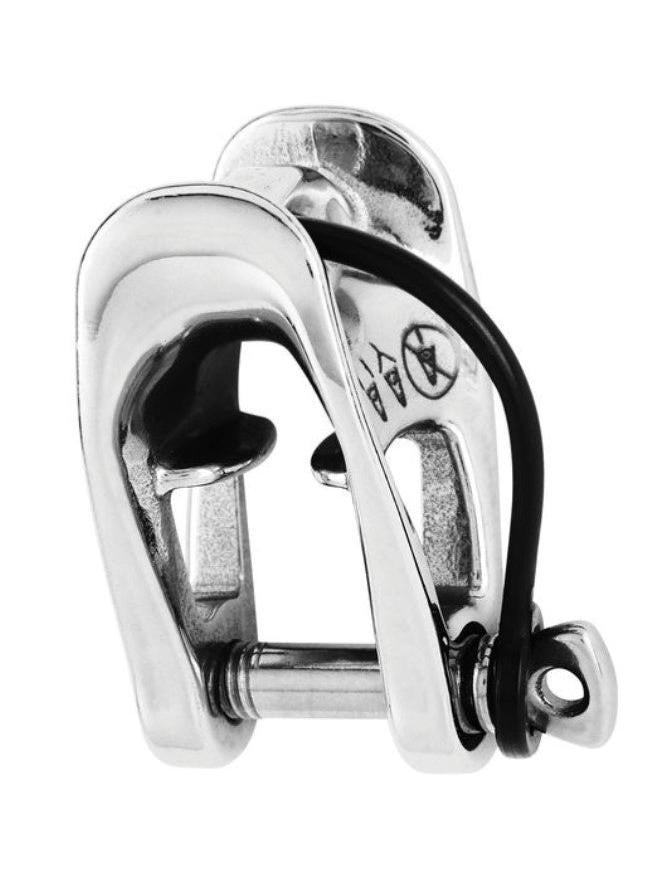

WICHARD MXEvo DIA 8 MM - CAPTIVE PIN

MXEvo is the new generation of one-piece blocks developed by Wichard.
Thanks to the leash, this MXEvo version can't loose its pin while opening, manipulating and closing the block. The pin is forged in high-resistant 17.4PH stainless steel.

Main MXEvo features:
> Dedicated to heavy load applications
> Impressive working and breaking load limits
> Captive pin on the standard version
> Becket function to make tackles
> Rope kept on track thanks to the fins
> Optimized weight and dimensions
> Easy opening - Easy rope installation

• Materials316L stainless steel grade
• Rope sizePour cordage de 10 mm
• Length (mm)62
• Width (mm)36
• Working load (kg)1760
• Breaking load (kg)4100
• Weight (g)109
• A (mm)18
• B (mm)18
• C (mm)9
• D diameter (mm)8
