Features:

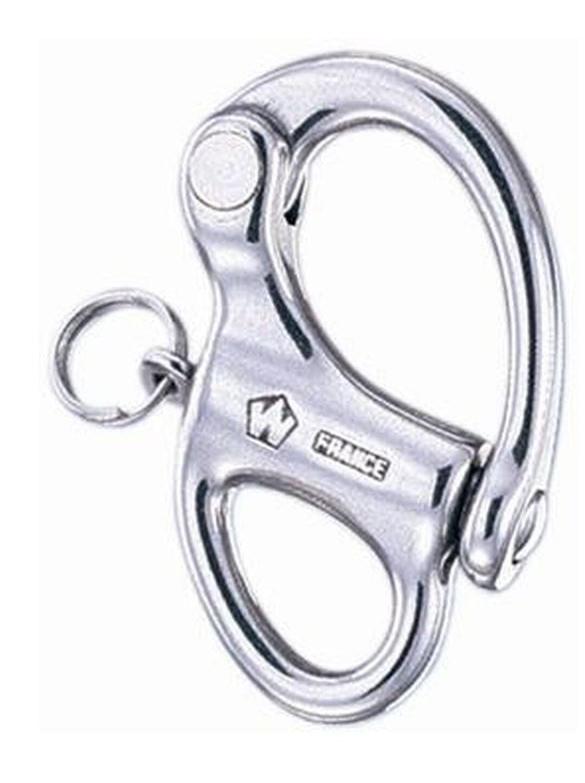

- Forged high resistance HR stainless fixed eye snap shackle.
- Lightweight and small.
- Excellent working and breaking loads
- No need for replacement parts: with captive plunger pin.
- Easy to open by pulling the plunger pin (with option to attach a lanyard)
Part # | Description | Working Load | Breaking Strength | Length | Shackle ID | Bail ID | |||||
lbs | kg | lbs | kg | in | mm | in | mm | in | mm | ||
2470 | Small | 440 | 220 | 880 | 400 | 1.38 | 35 | 0.31 | 8 | 0.25 | 6 |
2471 | Medium | 2645 | 1200 | 4450 | 2020 | 2.00 | 51 | 0.62 | 16 | 0.41 | 10 |
2472 | Large | 3525 | 1600 | 7750 | 3515 | 2.75 | 70 | 0.81 | 20.5 | 0.50 | 13 |
