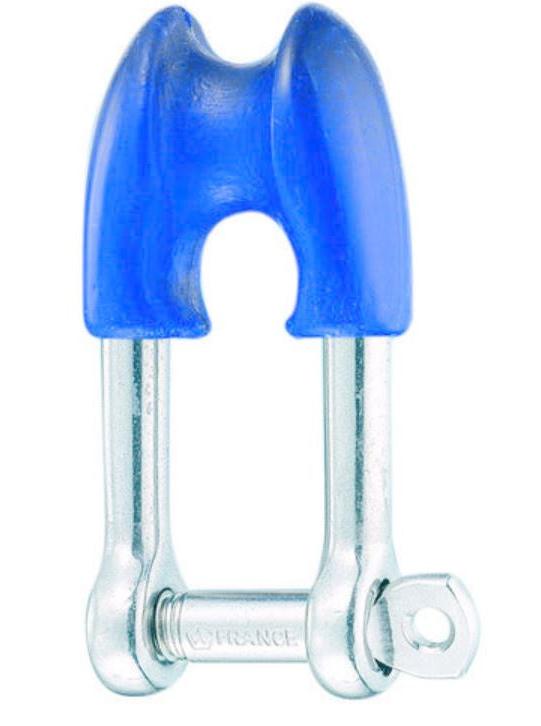

Wichard THIMBLE SHACKLE D.8 mm (CAPTIVE)

Wichard THIMBLE SHACKLE D.8 mm (CAPTIVE)

$43.85
$43.85
Sold out
Tax included.

  • Thimble shackle with captive pin forged in grade 316L stainless steel
    Allows to spliced a rope without adding and additional thimble
    With the captive pin, no risk to lose the pin
    Outstanding working and breaking loads

    Applications

    Mainsheet halyards
    Max rope size: 12 mm
  • Materials316 stainless steel grade
  • Working load (kg)1000
  • Breaking load (kg)3000
  • Weight (g)78
  • A (mm)41
  • B (mm)16
  • C (mm)8
  • D (mm)16
  • D diameter (mm)8
  • E (mm)7
  • F (mm)76
  • G (mm)42
