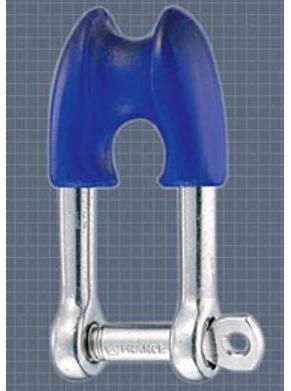

- Forged in grade 316 stainless steel thimble shackles with allen head pin.
- This patented thimble shackle is strong, light and compact.
- Rope can be spliced directly over the glass fiber reinforced polypropylene molded shape. This eliminates the use of an additional thimble.
- Outstanding working and breaking loads.
- Application: mainsheet halyards.
Part # | Weight | Working Load | Breaking Strength | Inside Length | Inside Width | Pin Diameter | |||||
kg | lbs | kg | lbs | kg | in | mm | in | mm | in | mm | |
1394 | 0.078 | 2205 | 1000 | 6614 | 3000 | 1.61 | 41 | 0.63 | 16 | 0.31 | 8 |
1395 | 0.146 | 3351 | 1520 | 11023 | 5000 | 2.01 | 51 | 0.79 | 20 | 0.39 | 10 |
