Wichard
Wichard Thimble Shackles Allen Head Pin for Main Halyard - 1394
Wichard Thimble Shackles Allen Head Pin for Main Halyard - 1394
Regular price
$58.15 AUD
Regular price
Sale price
$58.15 AUD
Unit price
/
per
Taxes included.
Couldn't load pickup availability

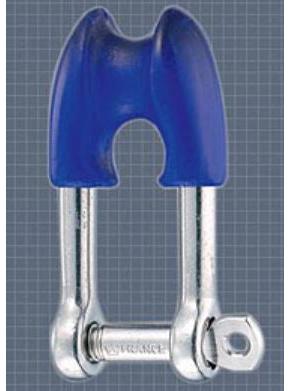

Thimble shackle with allen head pin forged in grade 316L stainless steel
Allows to spliced a rope without adding and additional thimble
With the captive pin, no risk to lose the pin
Outstanding working and breaking loads
Allows to spliced a rope without adding and additional thimble
With the captive pin, no risk to lose the pin
Outstanding working and breaking loads
Applications
Mainsheet halyards
Max rope size: 12 mm
Max rope size: 12 mm
- Working load (kg)1000
- Breaking load (kg)3000
- Weight (g)76

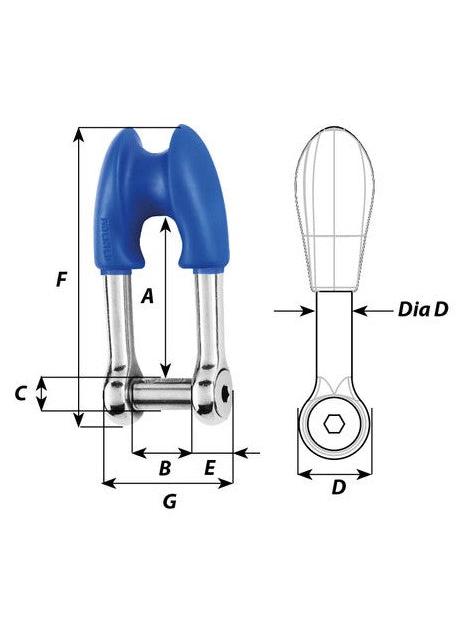

- A (mm)41
- B (mm)16
- C (mm)8
- D (mm)16
- D diameter (mm)8
- E (mm)7
- F (mm)76
- G (mm)33
