Wichard
WICHARD HR KEY PIN SHACKLE WITH BAR - 6MM DIA
WICHARD HR KEY PIN SHACKLE WITH BAR - 6MM DIA
Regular price
$45.80 AUD
Regular price
Sale price
$45.80 AUD
Unit price
/
per
Taxes included.
Couldn't load pickup availability

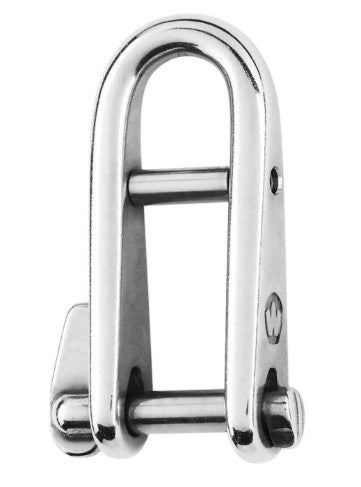

Forged D shackle in HR stainless steel grade (17,4 PH)
Outstanding working and breaking load
A HR shackle can be up to 60% more resistant than a shackle in 316L stainless stee
WLL: only for industrial applications (lifting i.e…)
CE marking
Outstanding working and breaking load
A HR shackle can be up to 60% more resistant than a shackle in 316L stainless stee
WLL: only for industrial applications (lifting i.e…)
CE marking
Applications
Applications requesting high loads
Perfect product for halyards or applications requiring to open /close the shackle often
Do not use for mooring applications
Perfect product for halyards or applications requiring to open /close the shackle often
Do not use for mooring applications
Materials HR 17.4 PH stainless steel grade
- Working load (kg)600
- Breaking load (kg)2200
- Weight (g)53
- A (mm)45
- B (mm)16
- C (mm)6
- D (mm)13
- E (mm)4
- F (mm)60
- G (mm)37
- L (mm)15
