Wichard
WICHARD HR KEY PIN SHACKLE WITH BAR - DIA.5
WICHARD HR KEY PIN SHACKLE WITH BAR - DIA.5
Regular price
$37.00 AUD
Regular price
Sale price
$37.00 AUD
Unit price
/
per
Taxes included.
Pickup available at 5 Kalaf Ave
Usually ready in 4 hours
Forged D shackle in HR stainless steel grade (17,4 PH)
Outstanding working and breaking load
A HR shackle can be up to 60% more resistant than a shackle in 316L stainless stee
WLL: only for industrial applications (lifting i.e…)
CE marking
Outstanding working and breaking load
A HR shackle can be up to 60% more resistant than a shackle in 316L stainless stee
WLL: only for industrial applications (lifting i.e…)
CE marking
Applications
Applications requesting high loads
Perfect product for halyards or applications requiring to open /close the shackle often
Do not use for moorring applications
Perfect product for halyards or applications requiring to open /close the shackle often
Do not use for moorring applications
MaterialsHR 17.4 PH stainless steel grade
- Working load (kg)480
- Breaking load (kg)1500
- Weight (g)31

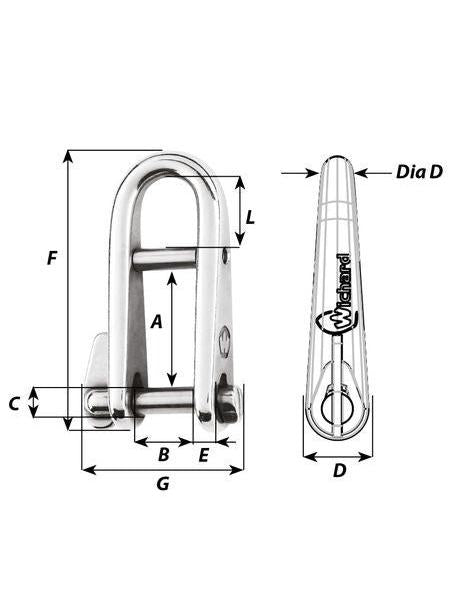

- A (mm)37
- B (mm)13
- C (mm)5
- D (mm)11
- E (mm)4
- F (mm)49
- G (mm)31
- L (mm)12
