Wichard
WICHARD CAPTIVE BOW SHACKLE - 6MM
WICHARD CAPTIVE BOW SHACKLE - 6MM
Regular price
$26.00 AUD
Regular price
Sale price
$26.00 AUD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Captive pin bow shackle forged in grade 316L stainless steel
The pin is connected to the body at all times even when opened
The pin is locked into one of the indentations
No risks of loose due to vibrations
Outstanding working and breaking loads
Single handed operation for more safety
WLL: only for industrial applications (lifting i.e…)
CE marking
The pin is connected to the body at all times even when opened
The pin is locked into one of the indentations
No risks of loose due to vibrations
Outstanding working and breaking loads
Single handed operation for more safety
WLL: only for industrial applications (lifting i.e…)
CE marking
Applications
To be used when ample room is required
Possibility to attach several lines or cables
Possibility to attach several lines or cables
Materials316 stainless steel grade
Working load (kg)600
- WLL (kg)440
- Breaking load (kg)2200
- Weight (g)33

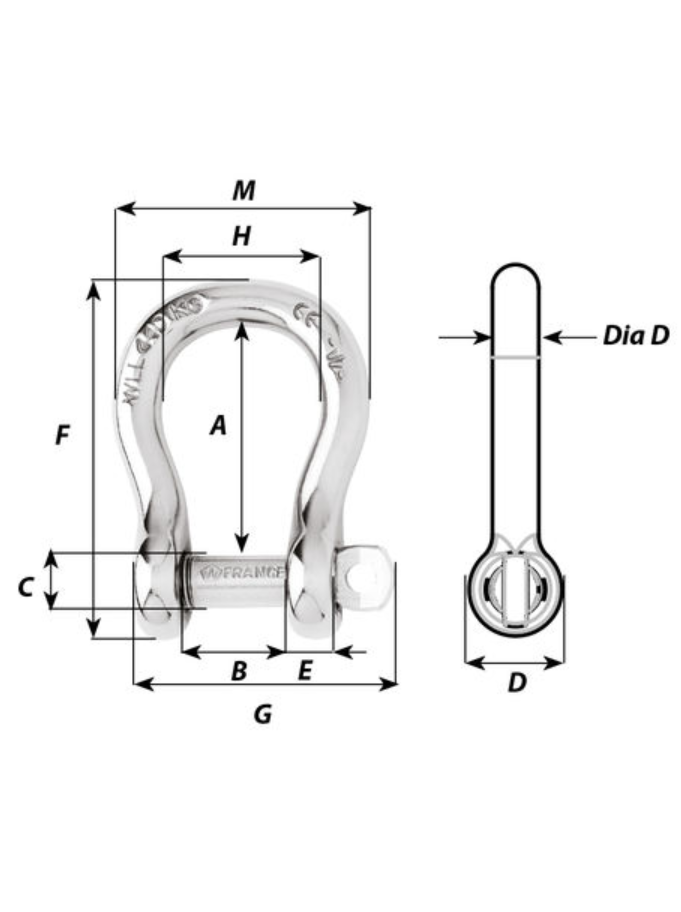

- A (mm)27
- B (mm)12
- C (mm)7
- D (mm)14
- D diameter (mm)6
- E (mm)6
- M (mm)31
