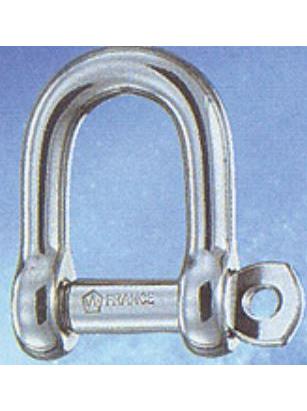

WICHARD STRAIGHT CAPTIVE SHACKLE D 6

• Captive pin "D" shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loose due to vibrations
• Outstanding working and breaking loads
• le manillon ne peut se perdre
• Single handed operation for more safety

Applications

• Standard applications of shackle
• Attachment applications: blocks, head …

• Materials316 stainless steel grade
• Working load (kg)680
• WLL (kg)440
• Breaking load (kg)2200
• Weight (g)28
• A (mm)20
• B (mm)12
• C (mm)7
• D (mm)14
• D diameter (mm)6
• E (mm)6
• F (mm)36
• G (mm)32
