WICHARD STRAIGHT CAPTIVE SHACKLE D 5

WICHARD STRAIGHT CAPTIVE SHACKLE D 5

Regular price
$14.05
Sale price
$14.05
Regular price
$15.80
Sold out
Unit price
per
Tax included.

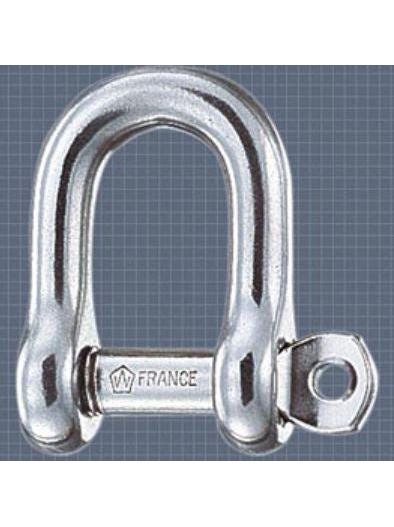

  • Captive pin "D" shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loose due to vibrations
  • Outstanding working and breaking loads
  • Single handed operation for more safety

Applications

  • Standard applications of shackle
  • Attachment applications: blocks, head …

  • Materials316 stainless steel grade
  • Working load (kg)480
  • WLL (kg)300
  • Breaking load (kg)1500
  • Weight (g)16
  • A (mm)16
  • B (mm)10
  • C (mm)6
  • D (mm)11
  • D diameter (mm)5
  • E (mm)5
  • F (mm)11
  • G (mm)30
  • H (mm)27
