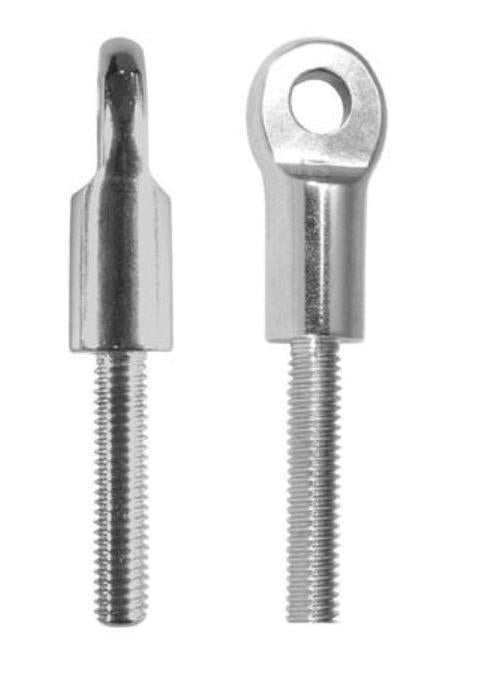

316 grade stainless steel anchor bolt.
Compact design commonly used in balustrading applications.
| PART NUMBER | THREAD (A) | OVERALL LENGTH (B) | THREAD LENGTH (C) | BOLT DIAMETER (D) | WIDTH (E) | ANCHOR WIDTH (F) | G |
|---|---|---|---|---|---|---|---|
| BLA-165056 | M6 | 58mm | 27mm | 6.5mm | 14mm | 11mm | 5mm |
