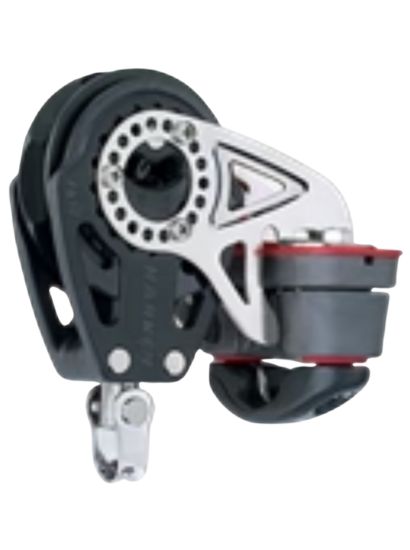

2138 57mm Carbo Ratchet Block w/Cam Cleat


Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.

FootnoteMaximum working loads and breaking loads for blocks based on cam strengths.
Sheave Ø (mm)57 mm
Length (mm)103 mm
Weight (g)247 g
Shackle pin Ø (mm)5 mm
Maximum line Ø (mm)10 mm
Maximum working load (kg)136 kg
Breaking load (kg)340 kg
Holding power10:1

DO NOT use Harken equipment for human suspension unless product is specifically certified and labeled for such use.


Style Code  2138
