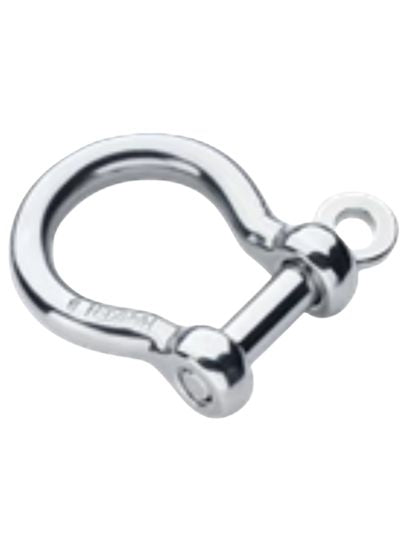

2132 5mm Shallow Bow Shackle


Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

Bow shackles are best for multidirectional loads. Shallow bow shackles are proportionally wider for their length than regular bow shackle

Shackle pin Ø (mm)5 mm
Weight (g)14.5 g
A (mm)17 mm
B (mm)11 mm
C (mm)14 mm
Maximum working load (kg)540 kg

BreakinBreakin                                                1080 kg


Style Code  2132
