Harken
HARKEN 2110 6mm BOW SHACKLE
HARKEN 2110 6mm BOW SHACKLE
Regular price
$32.67 AUD
Regular price
Sale price
$32.67 AUD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Maximum working load (kg) 750 kg
Maximum working load (lb) 1650 lb
Shackle pin Ø (mm) 6 mm
Shackle pin Ø (in) 1/4 in

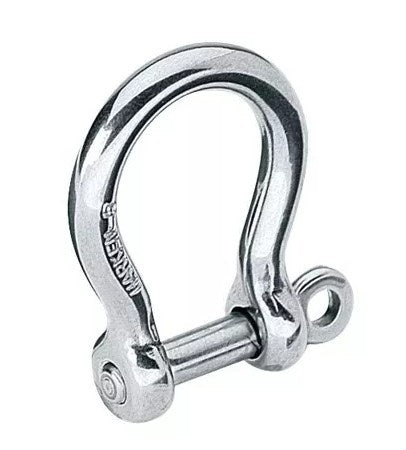

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.
| Weight (g) | 29.5 g |
| Weight (oz) | 1.04 oz |
| Maximum working load (kg) | 750 kg |
| Maximum working load (lb) | 1650 lb |
| Breaking load (lb) | 3300 lb |
| Breaking load (kg) | 1500 kg |

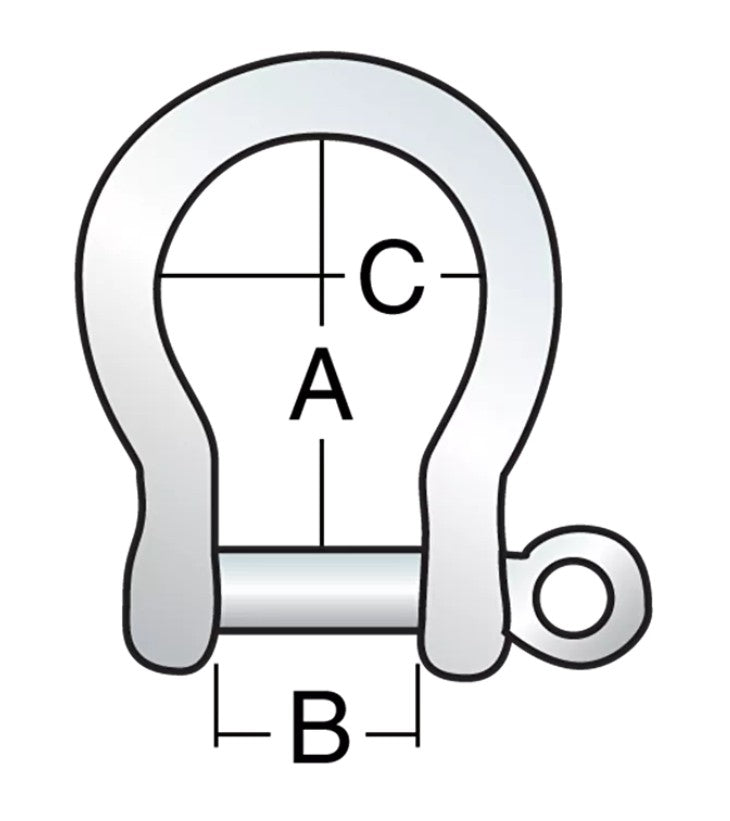

| A (mm) | 27 mm |
| A (in) | 1 1/16 in |
| B (mm) | 14 mm |
| B (in) | 9/16 in |
| Shackle pin Ø (mm) | 6 mm |
| Shackle pin Ø (in) | 1/4 in |
| C (mm) | 19 mm |
| C (in) | 3/4 in |
