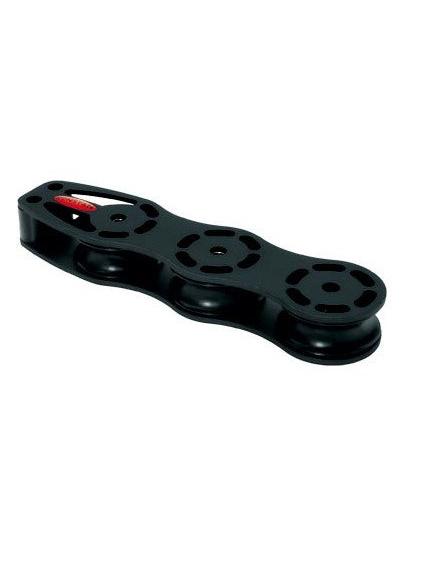

RONSTAN SERIES 40 AP 3 SHEAVE DECK ORGANISER

RONSTAN SERIES 40 AP 3 SHEAVE DECK ORGANISER

Regular price
$76.61
Sale price
$76.61
Regular price
$92.94
Sold out
Unit price
per
Tax included.

  • Lightweight design with cheek cut outs for easy bearing maintenance
  • Through hub mounting for maximum strength
  • All-purpose bearing system provides maximum static load capacity
  • Mount with 5 x 6mm  fasteners, not supplied
  • Length - 164mm
  • Hole centres at 48.5mm
  • Line deflection on larger yachts (depending on load and angle of deflection)
  • Halyard and control line deflection on boats to 11m (36ft)
  • Cheek plates: Anodised aluminium
  • U.V. stabilised Acetal sheaves
  • Grade 316 stainless steel hubs
  • Sheave Ø 40 mm
    Max. Rope Ø 12 mm
    Max. Cable Ø - mm
    Fastener Ø 6.0 mm
    M.W.L. 500 kg
    B. L. 1000 kg
    Weight 142 g
