RONSTAN SERIES 40 BB SINGLE LOOP TOP
RONSTAN SERIES 40 BB SINGLE LOOP TOP
Couldn't load pickup availability

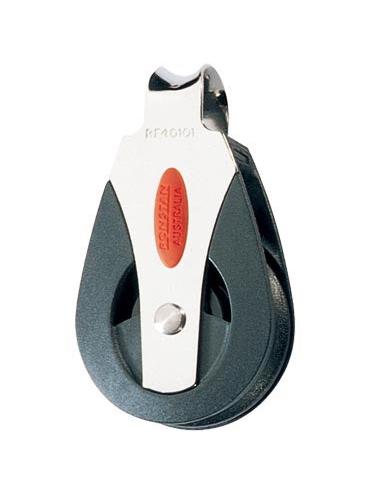

Single sheave block with loop head
FEATURES
Low friction Acetal bearing system.
Lightweight.
Cheek cut-outs for easy bearing maintenance
Low friction, 2-stage ball bearing system.
High static and dynamic load capacity.
Lightweight.
Cheek cut-outs for easy bearing maintenance
Specifications
| Type of Block | Single |
|---|---|
| Sheave diameter (mm) | 40mm |
| B.L. (kg) | 1000 |
| M.W.L. (kg) | 350 |
| Max. Rope diameter (mm) | 10 |
| Weight (g) | 53 |
Sheaves running on Acetal ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.
Applications
Mainsheet. Halyard. Vang. Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft)
Materials
Acetal ball bearings. UV stabilised Acetal sheave. Grade 316 stainless steel load strap and head fitting. Impact and UV resistant, fibre reinforced Nylon cheeks
