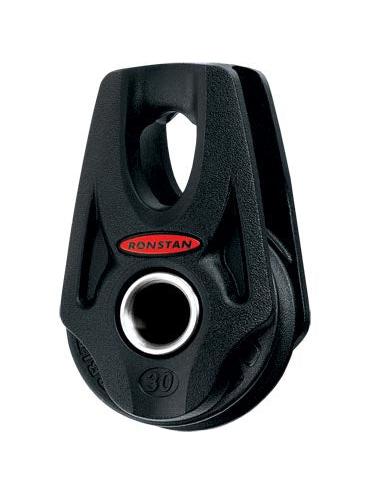

S30 BB OrbitBlock, Single, Becket Option, Lashing

  • Lightweight
  • Highest working load in its class
  • Secure, versatile attachment
  • Ultra low profile thru-sheave becket
  • Low friction 2-stage ball bearing system provides consistent performance over the full working load range
  • SP versions feature a Nylatron® sheave suitable for both rope and wire
  • Accepts RF1850S shackle in both orientations to create a conventional loop top block
Sheave Ø 30 mm
Max. Rope Ø 8 mm
Max. Cable Ø - mm
Pin Ø - mm
M.W.L. 300 kg
B. L. 600 kg
Weight 22 g

Style Code  RF35101
