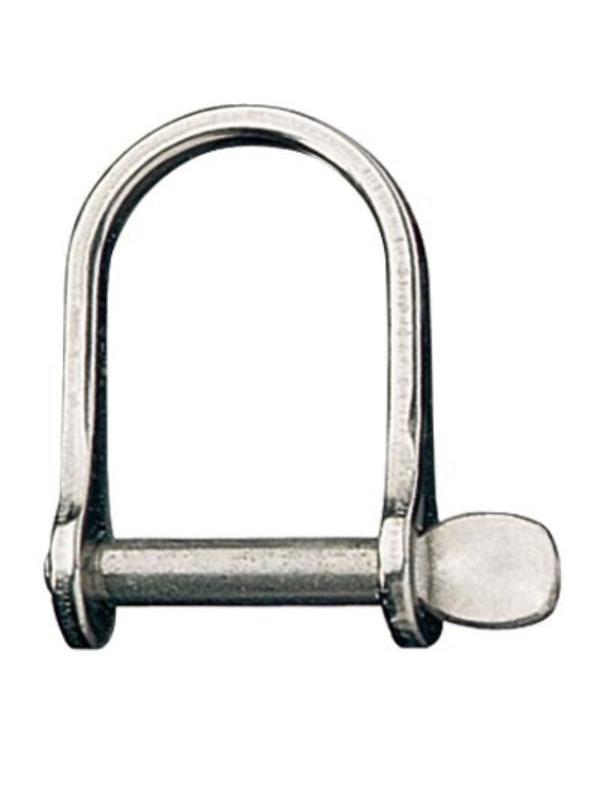

Wide D
FEATURES
High strength to weight ratio
SPECIFICATIONS
| Weight (g) | 15 |
|---|---|
| P.L. B.L. (kg) | 700 |
| U.D.L. B.L. (kg) | 1200 |
| Shackle Pin Product No. | - |
| Notes: | UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. |

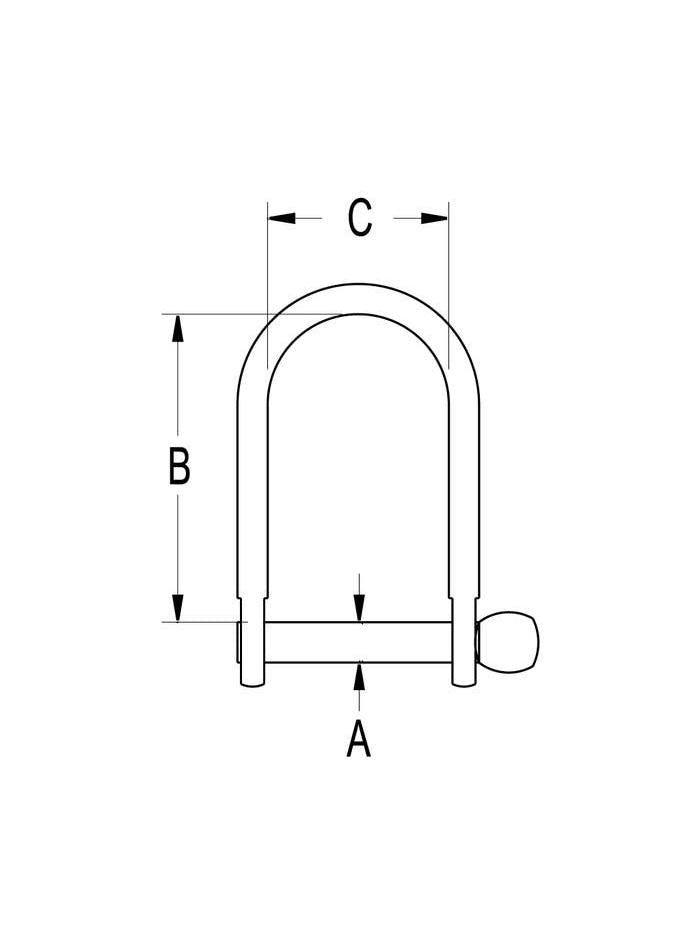

| A (mm) | 4.8 |
|---|---|
| B (mm) | 29.0 |
| C (mm) | 20.0 |
