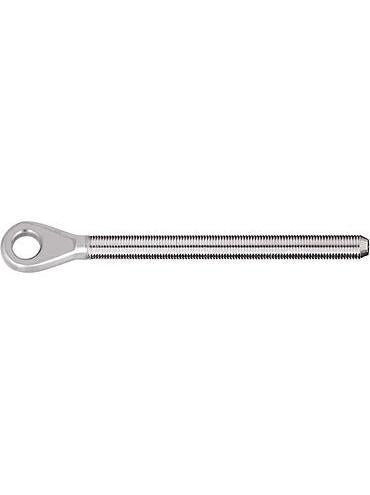

Threaded Eye, 1/4"


  • Threads are UNF (Unified National Fine), short pitch threads for fine adjustment and reduced adjustment effort
  • Compatible with Type 10 turnbuckles
  • B.L.=1480kg (3250lb)

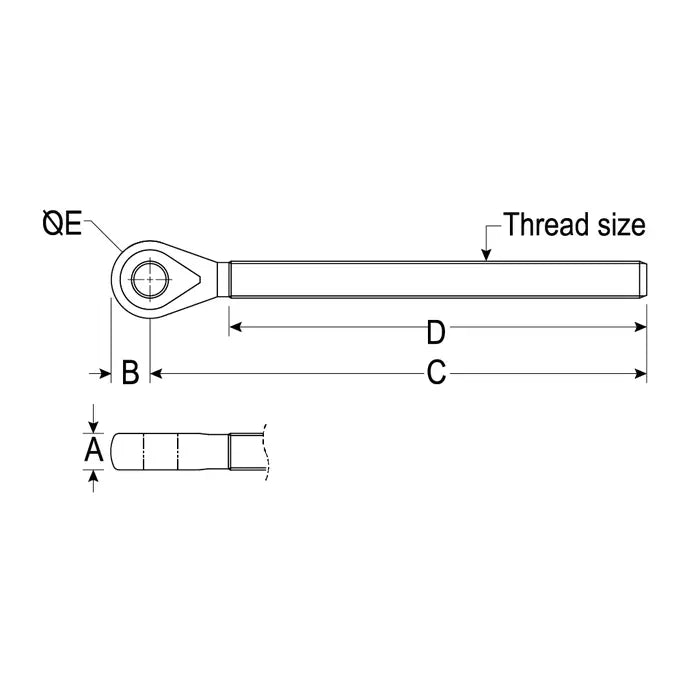

Thread 1/4" UNF
A 4.6 mm
B 5.7 mm
C 88 mm
D 75 mm
E 6.5 mm
F - mm
B. L. 1480 kg
Weight 19 g

Style Code  RF1502-0404
