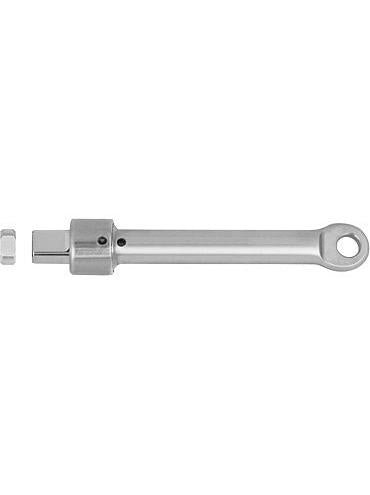

Eye End, Turnbuckle Body, Lock Nut, 1/4"

  • Sleek modern profile
  • Easy to adjust than conventional turnbuckles due to fine thread and single end adjustment
  • Threads are UNF (Unified National Fine), short pitch threads for fine adjustment and reduced adjustment effort
  • Easily adjusted - by turning the unique adjustment nut
  • Lock nut included to secure desired length
  • Site hole to indicate minimum terminal engagement
  • Use of dissimilar but compatible metals avoids the risk of thread seizure
  • Threaded eye, toggle and swage terminal end options available

Thread 1/4" UNF

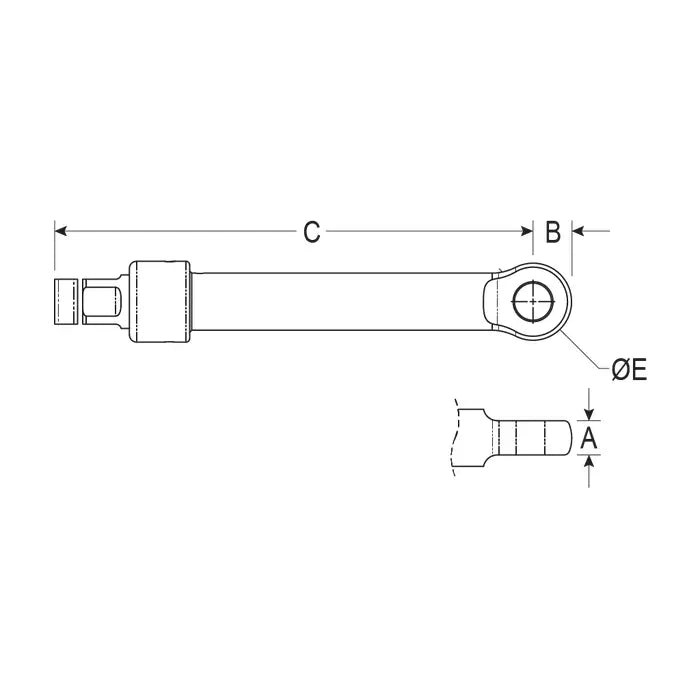

Adjust. Length mm
A 4.6 mm
B 7.0 mm
C 92 mm
D - mm
E 6.5 mm
B. L. 1480 kg
Weight 48 g

Style Code  RF1484-04
