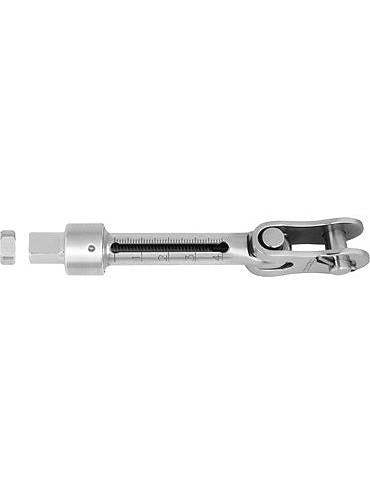

Turnbuckle Body, Calibrated, Lock Nut, 5/16"


  • Laser etched calibrations allow accurate, repeatable setting of rig tension
  • Sleek modern profile
  • Easier to adjust than conventional turnbuckles due to fine thread and single end adjustment
  • Threads are UNF (Unified National Fine), short pitch threads for fine adjustment and reduced adjustment effort
  • Easily adjusted - by turning the unique adjustment nut
  • Lock nut included to secure desired length
  • Use of dissimilar but compatible metals avoids the risk of thread seizure
  • Toggle end provides full lateral articulation and connection compatability
  • Threaded eye, toggle and swage terminal end options available
  • Handle kit and swage grip available for 5/16" threaded models

Thread 5/16" UNF

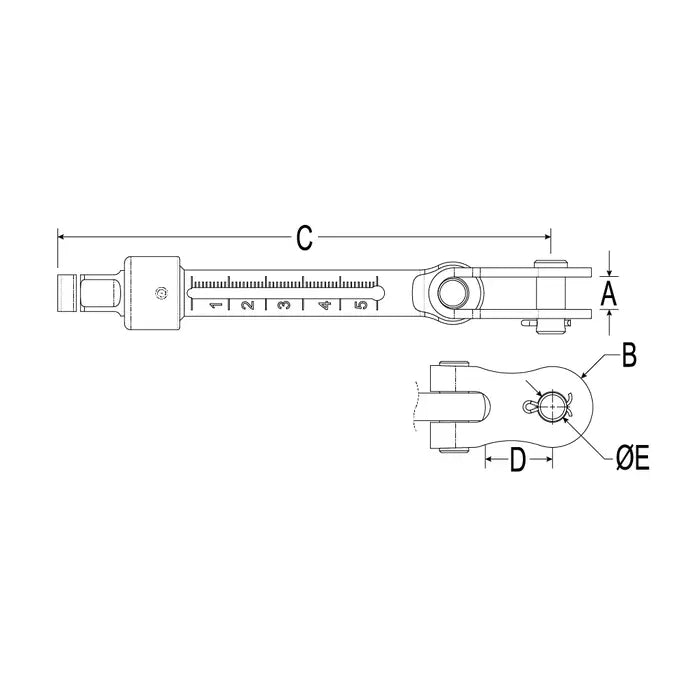

Adjust. Length mm
A 9.4 mm
B 11.2 mm
C 138 mm
D 20.7 mm
E 7.9 mm
B. L. 2360 kg
Weight 144 g

Style Code  RF1481-05
