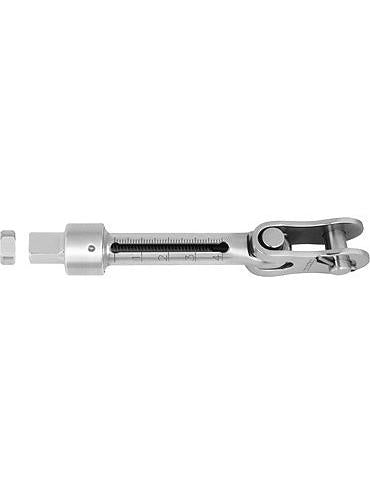

Turnbuckle Body, Calibrated, Lock Nut, 1/4"

  • Laser etched calibrations allow accurate, repeatable setting of rig tension
  • Sleek modern profile
  • Easier to adjust than conventional turnbuckles due to fine thread and single end adjustment
  • Threads are UNF (Unified National Fine), short pitch threads for fine adjustment and reduced adjustment effort
  • Easily adjusted - by turning the unique adjustment nut
  • Lock nut included to secure desired length
  • Use of dissimilar but compatible metals avoids the risk of thread seizure
  • Toggle end provides full lateral articulation and connection compatability
  • Threaded eye, toggle and swage terminal end options available
  • Handle kit and swage grip available for 5/16" threaded model

Thread 1/4
Adjust. Length mm

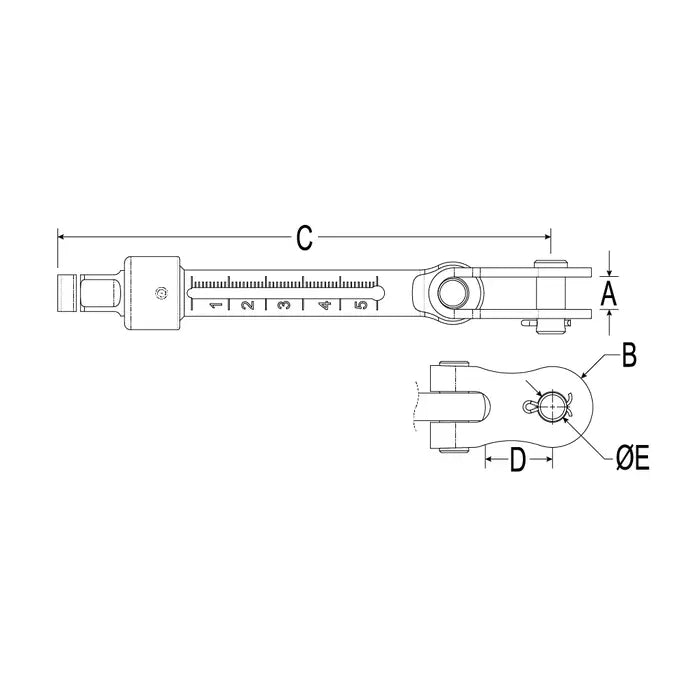

A 7.8 mm
B 9.1 mm
C 115 mm
D 16.3 mm
E 6.2 mm
B. L. 1480 kg
Weight 75 g

Style Code  RF1481-04
