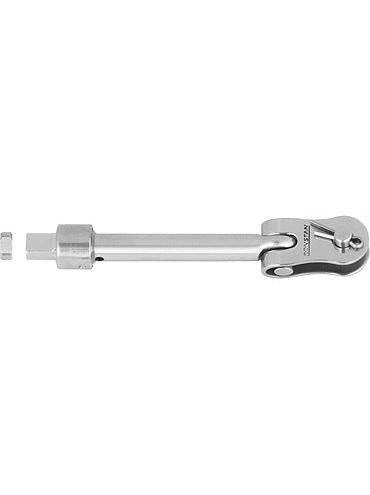

Turnbuckle Body, Lock Nut, 1/4"


  • Sleek modern profile
  • Easy to adjust than conventional turnbuckles due to fine thread and single end adjustment
  • Threads are UNF (Unified National Fine), short pitch threads for fine adjustment and reduced adjustment effort
  • Easier to adjust than conventional turnbuckles due to single take-up by turning the unique adjustment nut
  • Lock nut included to secure desired length
  • Site hole to indicate minimum terminal engagement
  • Use of dissimilar but compatible metals avoids the risk of thread seizure
  • Toggle end provides full lateral articulation and connection compatability
  • Threaded eye, toggle and swage terminal end options available

Thread 1/4" UNF

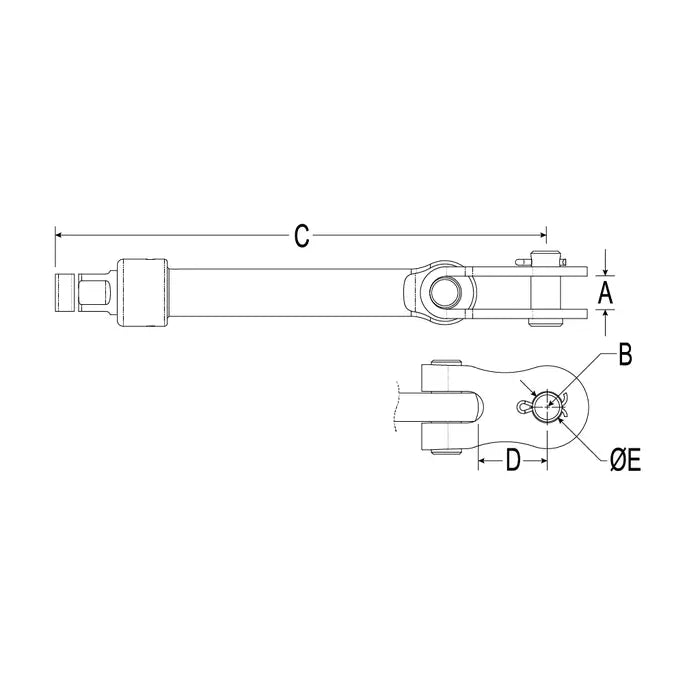

Adjust. Length mm
A 7.8 mm
B 9.1 mm
C 115 mm
D 16.3 mm
E 6.2 mm
B. L. 1480 kg
Weight 75 g

Style Code  RF1480-04
