Ronstan

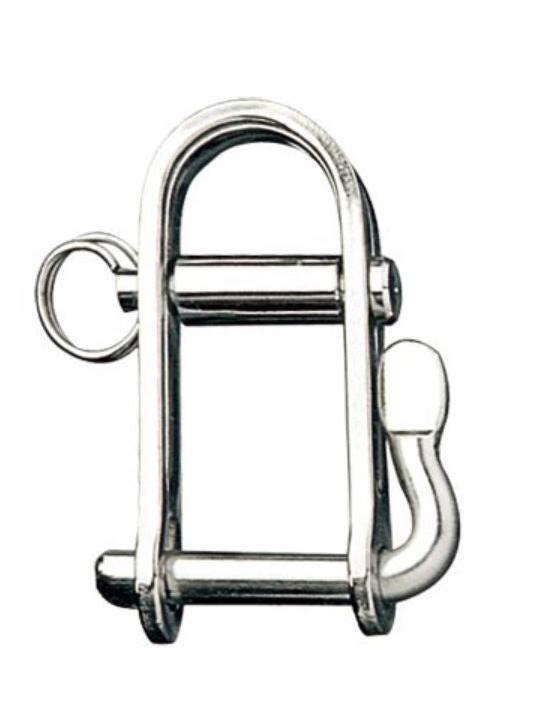

RONSTAN HALYARD CAPTIVE PIN SHACKLE - 3/16INCH L:22MM,W:15MM
RONSTAN HALYARD CAPTIVE PIN SHACKLE - 3/16INCH L:22MM,W:15MM
Regular price
$19.91 AUD
Regular price
$22.78 AUD
Sale price
$19.91 AUD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Halyard shackles have a lever action for esay opening and closing, with a keyed pin for positive locking.
FEATURES
High strength to weight ratio
SPECIFICATIONS
| Weight (g) | 30 |
|---|---|
| P.L. B.L. (kg) | 900 |
| U.D.L. B.L. (kg) | 1200 |
| Shackle Pin Product No. | - |
| Notes: | UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. |

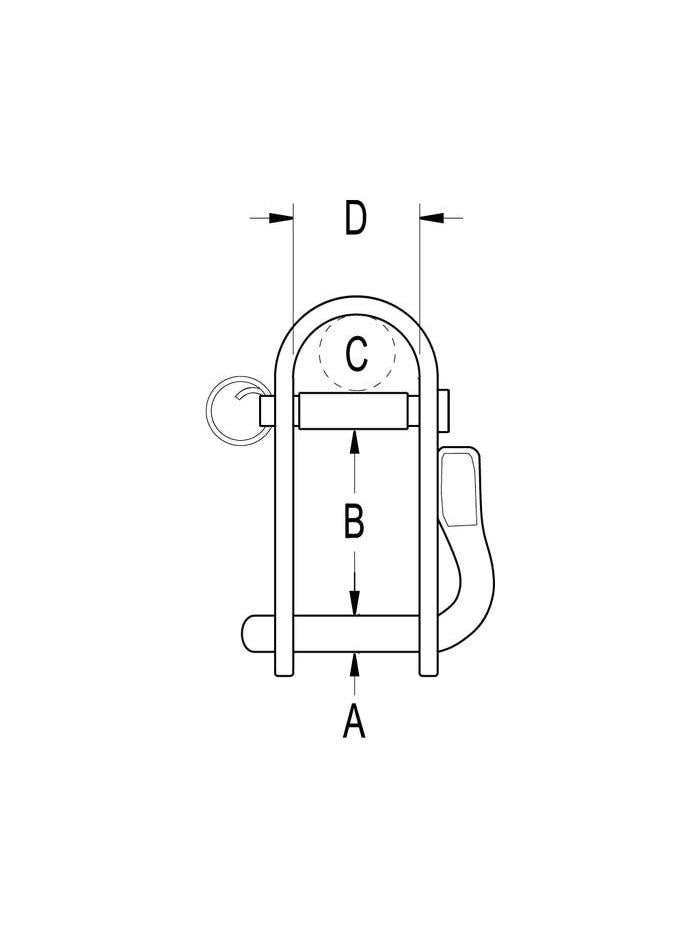

| A (mm) | 4.8 |
|---|---|
| B (mm) | 22.0 |
| C (mm) | 10.5 |
| D (mm) | 15.0 |
