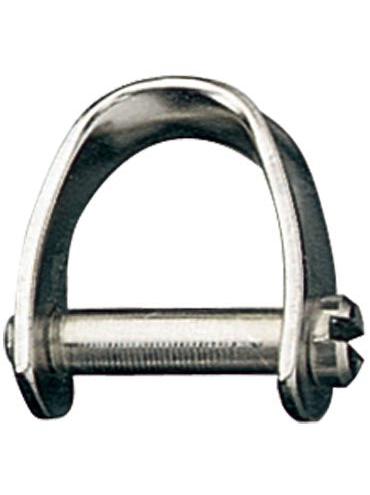

RONSTAN WIDE SLOTTED PIN SHACKLE - 3/16"
RONSTAN WIDE SLOTTED PIN SHACKLE - 3/16"
Regular price
$11.28 AUD
Regular price
$13.04 AUD
Sale price
$11.28 AUD
Unit price
per
Taxes included.
Couldn't load pickup availability
Grade 316 stainless steel Wide Shackle with a 3/16" diameter slotted shackle head pin.
Specifications
| Weight (g) | 10 |
|---|---|
| P.L. B.L. (kg) | 700 |
| U.D.L. B.L. (kg) | 950 |
| Shackle Pin Product No. | - |
| Notes: | UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. |
| A | 4.8 mm |
|---|---|
| B | 11.5 mm |
| C | 16.0 mm |
| P.L. B.L. | 700 kg |
| U.D.L. B.L. | 950 kg |
| Weight | 10 g |
