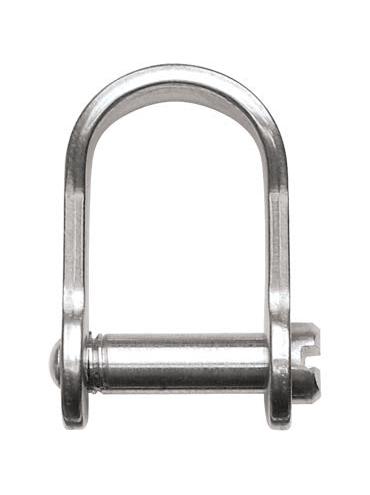

Lightweight, slotted pin
High strength to weight ratio.
Premium quality, rated
SPECIFICATIONS
Weight (g) | 10 |
---|---|
P.L. B.L. (kg) | 700 |
U.D.L. B.L. (kg) | 1200 |
Shackle Pin Product No. | - |
Notes: | UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. |
A (mm) | 4.8 |
---|---|
B (mm) | 17.0 |
C (mm) | 13.0 |
