RONSTAN BOW SHACKLE - Pin 5/16inch L:27mm,W:22mm
RONSTAN BOW SHACKLE - Pin 5/16inch L:27mm,W:22mm
Regular price
$15.13 AUD
Regular price
$16.81 AUD
Sale price
$15.13 AUD
Unit price
/
per

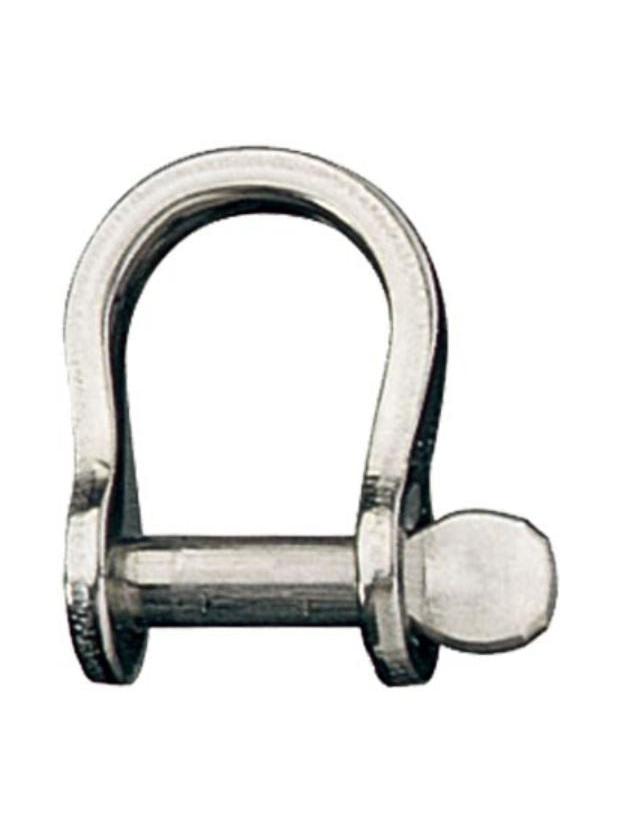

Stainless Steel Bow Shackle, 5/16" Pin, Coined Head
FEATURES
High strength to weight ratio
SPECIFICATIONS
Weight (g) | 45 |
---|---|
P.L. B.L. (kg) | 2700 |
U.D.L. B.L. (kg) | 3600 |
Shackle Pin Product No. | - |
Notes: | UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. |

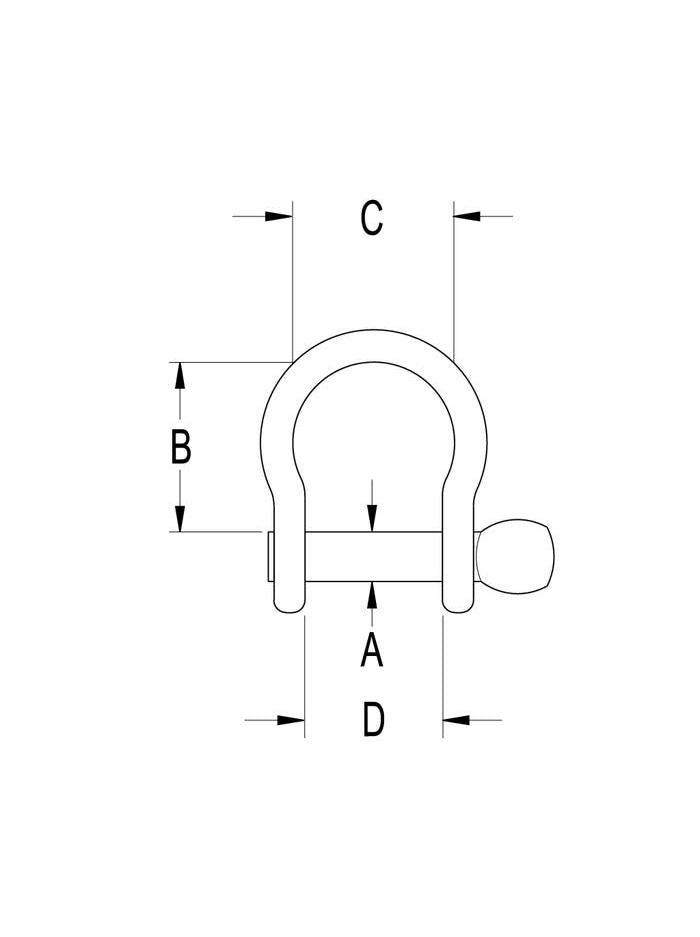

A (mm) | 7.9 |
---|---|
B (mm) | 27.0 |
C (mm) | 22.0 |
D (mm) | 16.0 |
