RONSTAN D SHACKLE - Pin 3/8INCH, L:40mm, W:18mm
RONSTAN D SHACKLE - Pin 3/8INCH, L:40mm, W:18mm
Regular price
$21.30 AUD
Regular price
$21.30 AUD
Sale price
$21.30 AUD
Unit price
per
Taxes included.
Couldn't load pickup availability

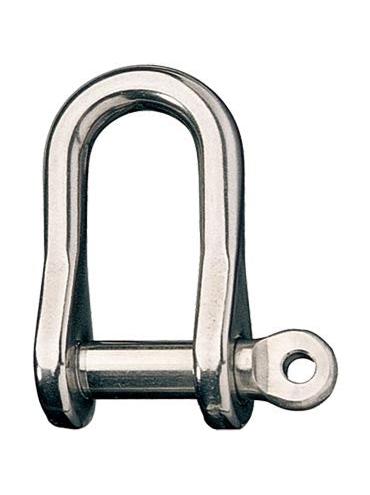

Grade 316 stainless steel standard D shackle, 3/8" diameter pin with a coined shackle pin head and seizing wire hole.
FEATURES
High strength to weight ratio.
Premium quality, rated
Specifications
| Weight (g) | 80 |
|---|---|
| Pin Ø (mm) | 9.5 |
| P.L. B.L. (kg) | 3600 |
| U.D.L. B.L. (kg) | 5400 |
| Shackle Pin Product No. | RF35 |
| Notes: | UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. Shackle pins drilled for seizing wire. |

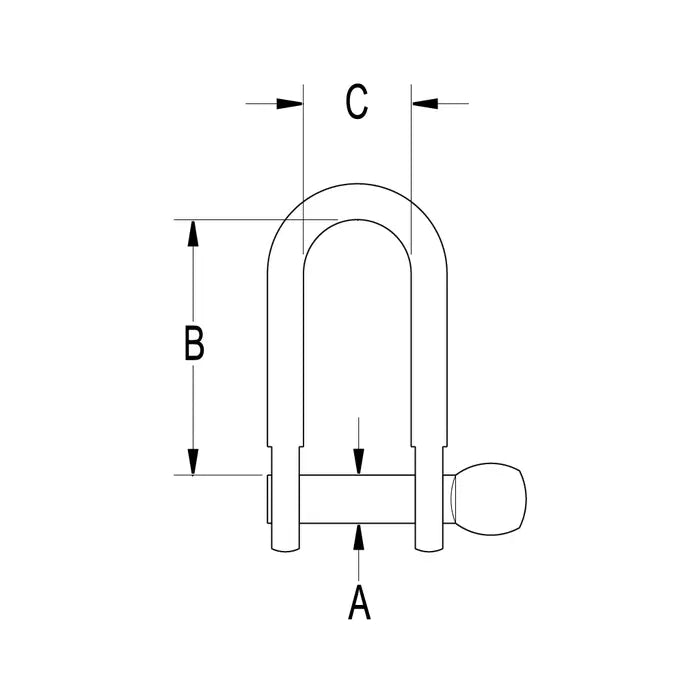

| A (mm) | 9.5 |
|---|---|
| B (mm) | 38 |
| C (mm) | 17 |
