RONSTAN D SHACKLE - COINED PIN HEAD 5/16inch ,L:29mm,W:17mm

RONSTAN D SHACKLE - COINED PIN HEAD 5/16inch ,L:29mm,W:17mm

$18.68 AUD
$18.68 AUD $18.68 AUD
Sale Sold out
Taxes included.

  • Grade 316 stainless steel standard D shackle, 5/16" diameter pin with a coined shackle pin head.

    FEATURES

    High strength to weight ratio.

    Premium quality, rated.

  • Weight (g) 50
    Pin Ø (mm) 7.9
    P.L. B.L. (kg) 2700
    U.D.L. B.L. (kg) 3600
    Shackle Pin Product No. RF34
    Notes: UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin.

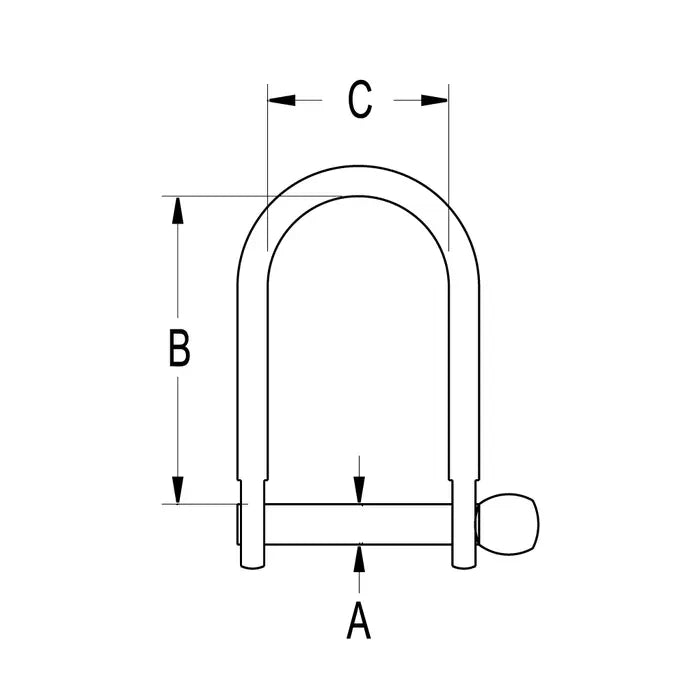

  • A (mm) 7.9
    B (mm) 29
    C (mm) 16
