Ronstan
RONSTAN SLOTTED PIN D SHACKLE 5/32inch ,L:13mm,W:8mm
RONSTAN SLOTTED PIN D SHACKLE 5/32inch ,L:13mm,W:8mm
Regular price
$5.33 AUD
Regular price
$5.59 AUD
Sale price
$5.33 AUD
Unit price
per
Taxes included.
Couldn't load pickup availability
Stainless Steel D Shackle, 5/32" Pin, Slotted Head
FEATURES
High strength to weight ratio.
Premium quality, rated
SPECIFICATIONS
| Weight (g) | 7 |
|---|---|
| P.L. B.L. (kg) | 700 |
| U.D.L. B.L. (kg) | 850 |
| Shackle Pin Product No. | - |
| Notes: | UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. |

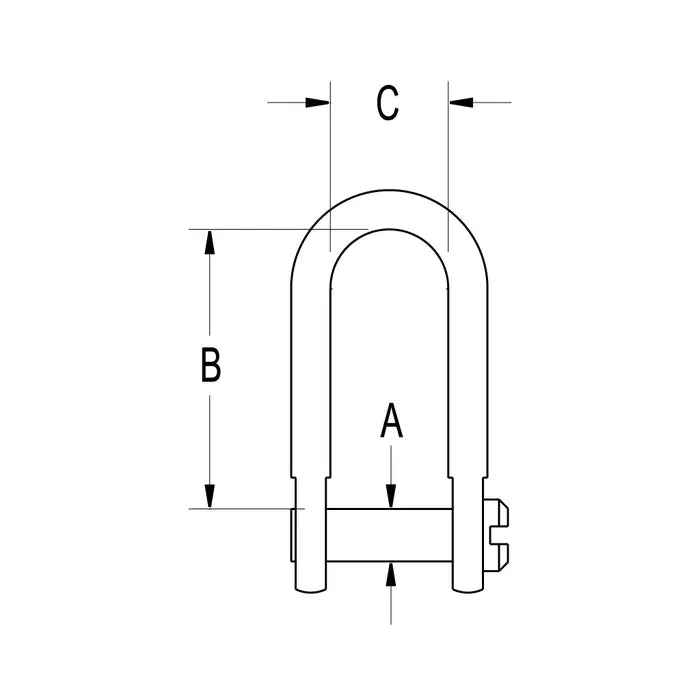

| A (mm) | 4.0 |
|---|---|
| B (mm) | 13.0 |
| C (mm) | 8.0 |
