Ronstan
RONSTAN SLOTTED PIN D SHACKLE - 5/32INCH ,L:16MM,W:10MM
RONSTAN SLOTTED PIN D SHACKLE - 5/32INCH ,L:16MM,W:10MM
Regular price
$5.84 AUD
Regular price
$6.48 AUD
Sale price
$5.84 AUD
Unit price
per
Taxes included.
Couldn't load pickup availability

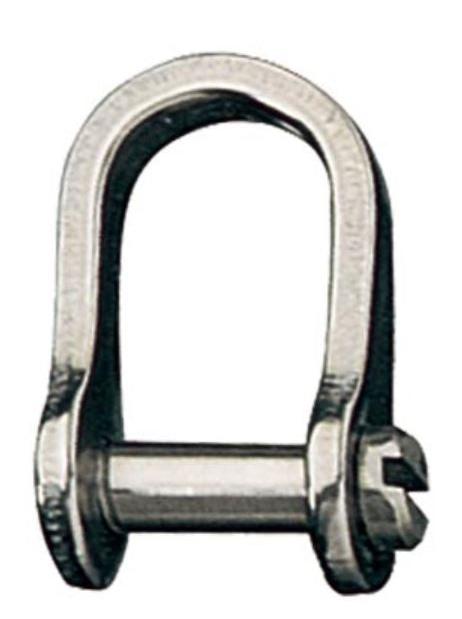

Stainless Steel D Shackle, 5/32" Pin, Slotted Head
FEATURES
High strength to weight ratio.
Premium quality, rated
SPECIFICATIONS
| Weight (g) | 5 |
|---|---|
| P.L. B.L. (kg) | 650 |
| U.D.L. B.L. (kg) | 850 |
| Shackle Pin Product No. | RF31 |
| Notes: | UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. |

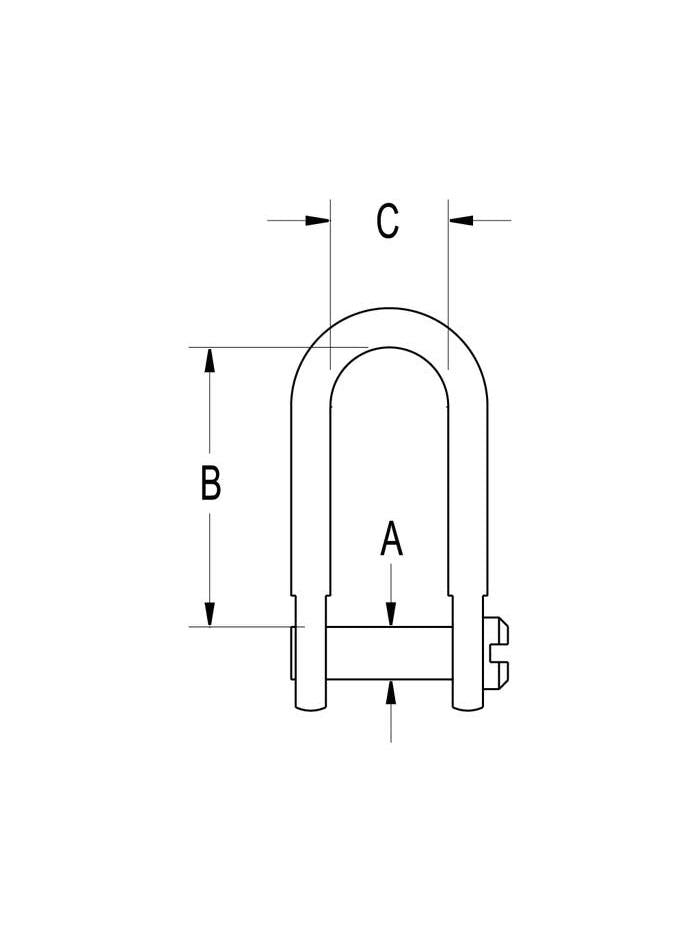

| A (mm) | 4.0 |
|---|---|
| B (mm) | 16.0 |
| C (mm) | 10.0 |
