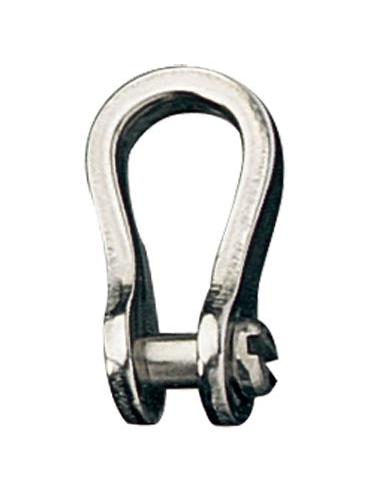

tainless Steel Narrow Shackle, 3/16" Pin, Slotted Head
FEATURES
High strength to weight ratio.
Low profile to prevent snagging on ropes etc
SPECIFICATIONS
| Weight (g) | 5 |
|---|---|
| P.L. B.L. (kg) | 1300 |
| U.D.L. B.L. (kg) | 1300 |
| Notes: |
UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. |
| A (mm) | 4.8 |
|---|---|
| B (mm) | 19.0 |
| C (mm) | 10 |
| D (mm) | 5.0 |
