Ronstan
RONSTAN MINI SWIVEL SHACKLE 5/32" PIN DIAMETER
RONSTAN MINI SWIVEL SHACKLE 5/32" PIN DIAMETER
Regular price
$22.10 AUD
Regular price
$24.56 AUD
Sale price
$22.10 AUD
Unit price
per
Taxes included.
Couldn't load pickup availability
Slotted head pin
Specifications
| Weight (g) | 10 |
|---|---|
| P.L. B.L. (kg) | 350 |
| U.D.L. B.L. (kg) | 500 |
| Shackle Pin Product No. | RF31 |
| Notes: | UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. |
Swivels are used in conjunction with blocks and rigging systems to provide articulation and rotation (not suitable for high speed rotating applications).

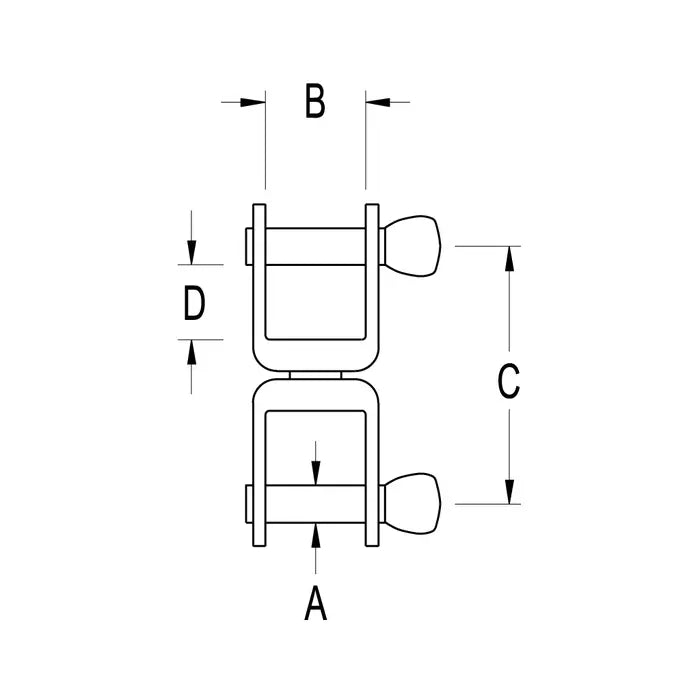

| A (mm) | 4 |
|---|---|
| B (mm) | 10 |
| C (mm) | 22 |
| D (mm) | 6 |
