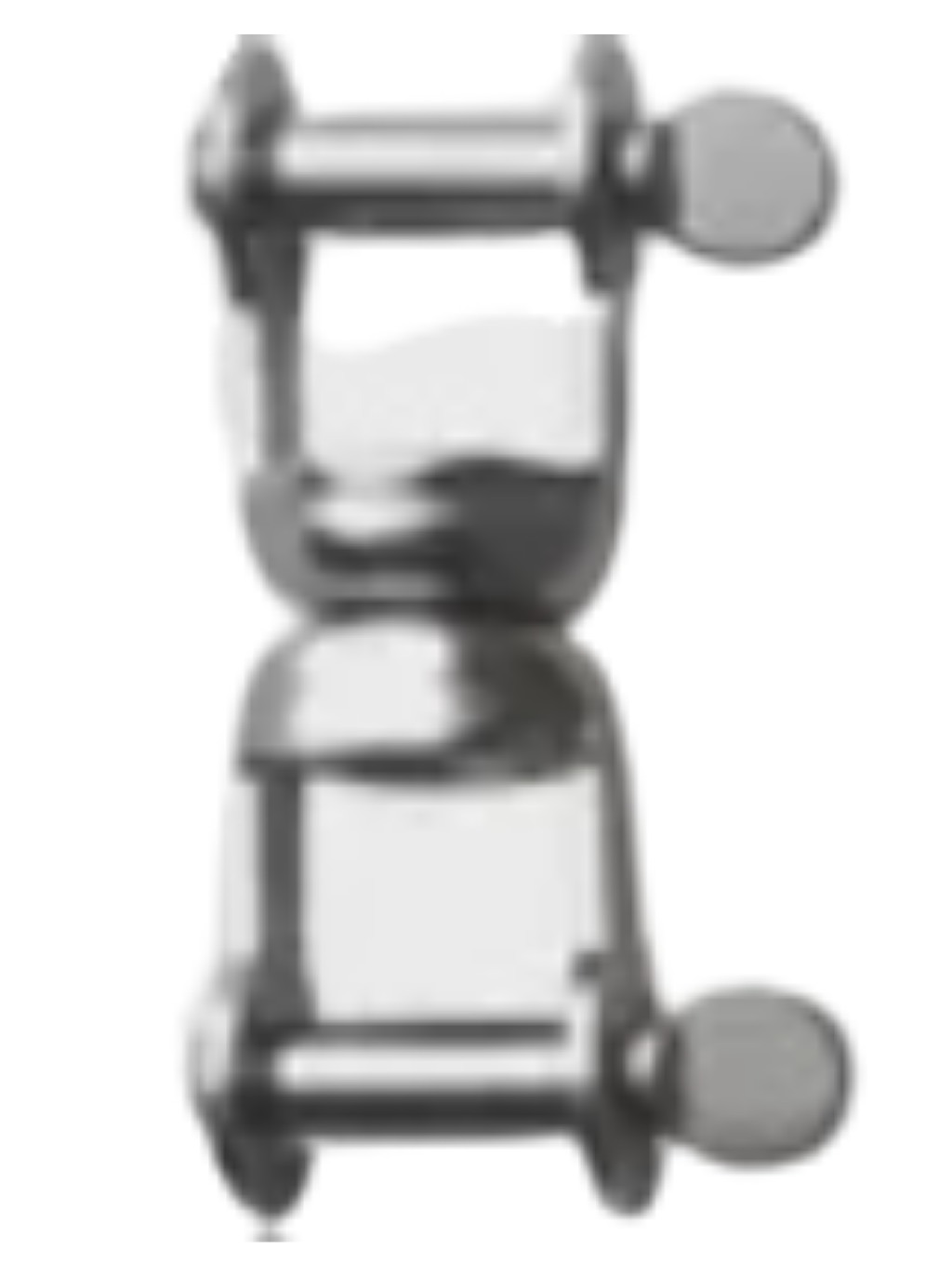

RONSTAN STAINLESS SWIVEL SHACKLE - 1/4" PIN DIAMETER
RONSTAN STAINLESS SWIVEL SHACKLE - 1/4" PIN DIAMETER
Regular price
$34.32 AUD
Regular price
$38.13 AUD
Sale price
$34.32 AUD
Unit price
per
Taxes included.
Couldn't load pickup availability
Coined head pin
Specifications
| Weight (g) | 40 |
|---|---|
| P.L. B.L. (kg) | 700 |
| U.D.L. B.L. (kg) | 1100 |
| Shackle Pin Product No. | RF33 |
| Notes: |
UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. |

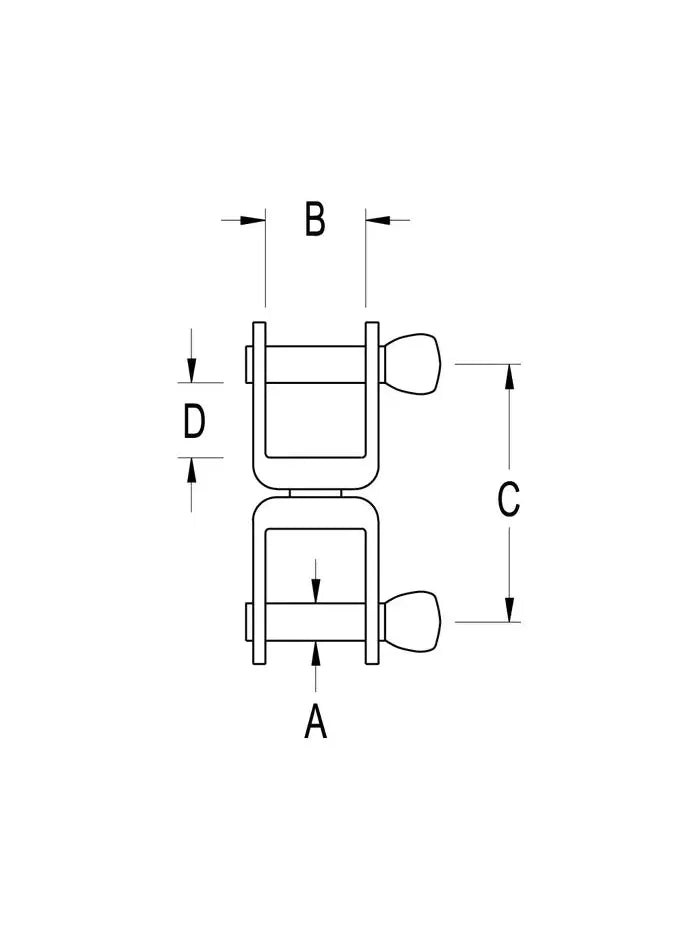

| A (mm) | 6.4 |
|---|---|
| B (mm) | 15 |
| C (mm) | 42 |
| D (mm) | 11.9 |
