RONSTAN D SHACKLE - SLOTTED PIN 5/16inch ,L:29mm,W:17mm
RONSTAN D SHACKLE - SLOTTED PIN 5/16inch ,L:29mm,W:17mm
Regular price
$18.48 AUD
Regular price
$13.18 AUD
Sale price
$18.48 AUD
Unit price
per
Taxes included.
Couldn't load pickup availability
Grade 316 stainless steel D Shackle with a 5/16" diameter slotted shackle head pin.
FEATURES
High strength to weight ratio.
Premium quality, rated
Specifications
| Weight (g) | 45 |
|---|---|
| P.L. B.L. (kg) | 2700 |
| U.D.L. B.L. (kg) | 3600 |
| Shackle Pin Product No. | - |
| Notes: | UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. |

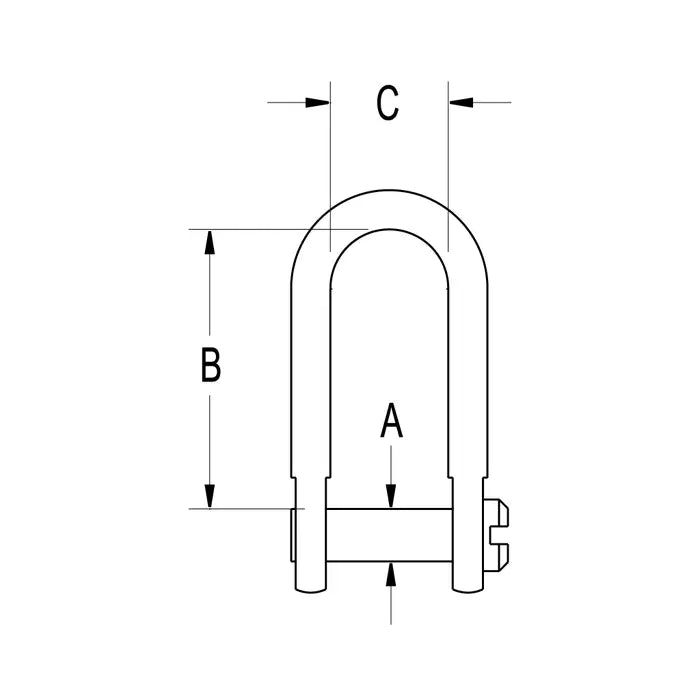

| A (mm) | 7.9 |
|---|---|
| B (mm) | 29 |
| C (mm) | 17 |
