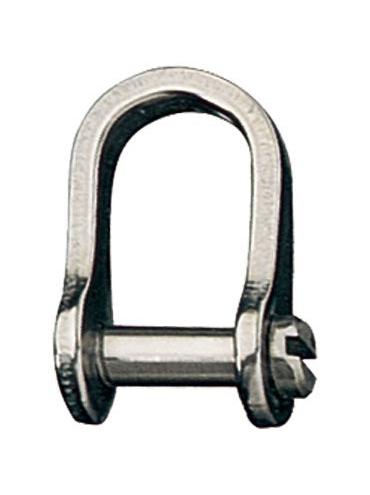

RONSTAN D SHACKLE - SLOTTED PIN 3/16", L:18mm, W:10mm
RONSTAN D SHACKLE - SLOTTED PIN 3/16", L:18mm, W:10mm
Regular price
$5.82 AUD
Regular price
$6.47 AUD
Sale price
$5.82 AUD
Unit price
/
per
Slotted pin
FEATURES
High strength to weight ratio.
Premium quality, rated
SPECIFICATIONS
Weight (g) | 10 |
---|---|
P.L. B.L. (kg) | 900 |
U.D.L. B.L. (kg) | 1500 |
Shackle Pin Product No. | - |
Notes: | UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. |

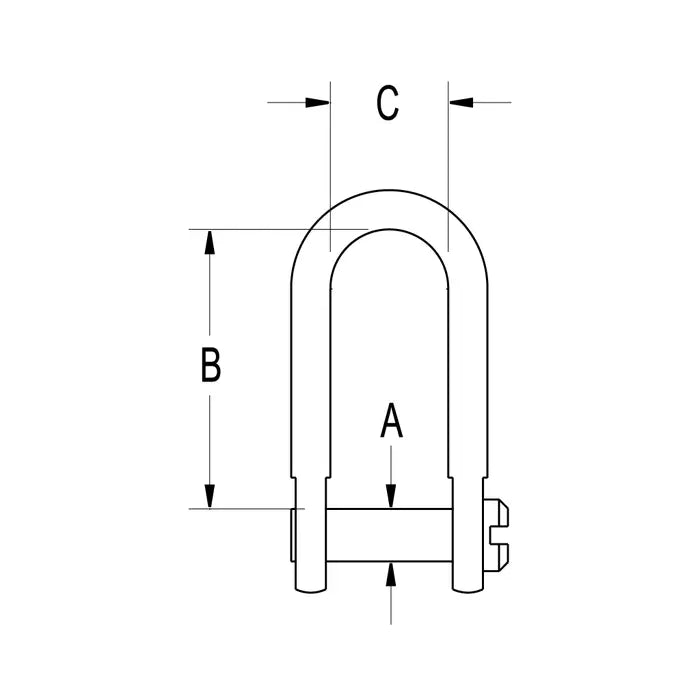

A (mm) | 4.8 |
---|---|
B (mm) | 18.0 |
C (mm) | 12.0 |
