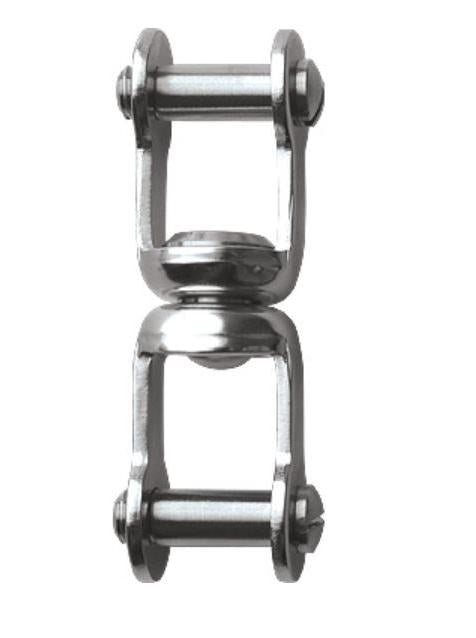

RONSTAN SWIVEL SHACKLE 7.9mm (5/16") PIN DIAMETER
RONSTAN SWIVEL SHACKLE 7.9mm (5/16") PIN DIAMETER
Regular price
$64.18 AUD
Regular price
$71.31 AUD
Sale price
$64.18 AUD
Unit price
per
Taxes included.
Couldn't load pickup availability
lotted head pin
Specifications
| Weight (g) | 80 |
|---|---|
| P.L. B.L. (kg) | 2100 |
| U.D.L. B.L. (kg) | 2300 |
| Shackle Pin Product No. | - |
| Notes: | UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin.PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. This product has stainless steel ball bearings. |

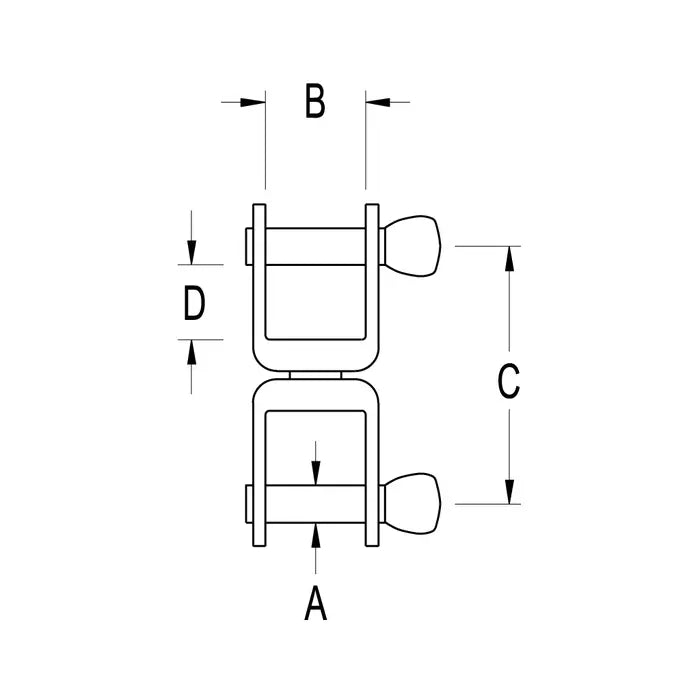

| A (mm) | 7.9 |
|---|---|
| B (mm) | 17 |
| C (mm) | 60 |
| D (mm) | 15.8 |
