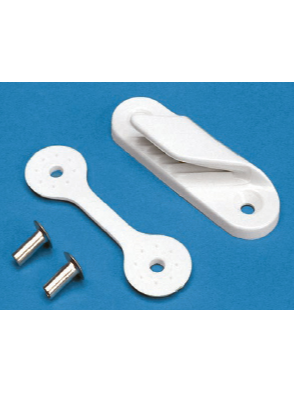

The Clamcleat® CL212 Leech Line Cleat is a low profile white nylon cleat, for sewing or riveting onto sails and technical fabrics. Can also be used on flag poles and tubes. It can be mounted in two positions on the sail. The tooth design allows a quick, positive lock that is easy to release, added to its low profile it is an ideal cleat for adjusting leech lines.
Includes Backing Plate and Rivets
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter |  |
2 - 5mm | 1/16 - 3/16" |
| Material |  |
Nylon | Nylon |
| Hole Centres |  |
49mm | 1 15/16" |
| Length |  |
70mm | 2 3/4" |
| Width |  |
21mm | 13/16" |
| Height |  |
13mm | 1/2" |
| Bolt Size |  |
M4 | #8-32. 5/32" |
| Screw Size |  |
4.2 | No 8 |
| Weight |  |
9gms | 0.3oz |
CL212BP Backplate
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter | |
N/Amm | N/A" |
| Material | |
Nylon | Nylon |
| Hole Centres | |
49mm | 1 15/16" |
| Length | |
70mm | 2 3/4" |
| Width | |
21mm | 13/16" |
| Height | |
3mm | 1/8" |
| Bolt Size | |
N/A | N/A |
| Screw Size | |
N/A | N/A |
| Weight | |
2gms | 0.08oz |
