RONSTAN BOW SHACKLE , PIN 3/16", L:17MM, W:14MM
RONSTAN BOW SHACKLE , PIN 3/16", L:17MM, W:14MM
Regular price
$7.22 AUD
Regular price
$7.22 AUD
Sale price
$7.22 AUD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Stainless Steel Bow Shackle, 3/16" Pin, Coined Head
FEATURES
High strength to weight ratio
SPECIFICATIONS
| Weight (g) | 10 |
|---|---|
| P.L. B.L. (kg) | 800 |
| U.D.L. B.L. (kg) | 1200 |
| Shackle Pin Product No. | RF32 |
| Notes: | UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. |

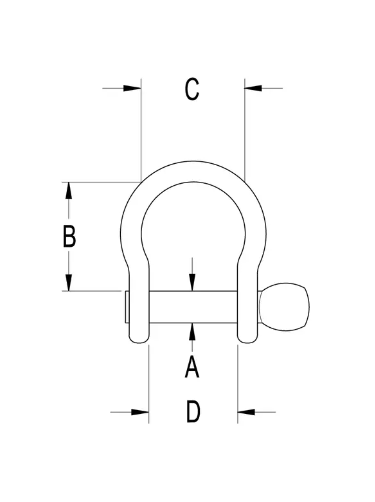

| A (mm) | 4.8 |
|---|---|
| B (mm) | 18.0 |
| C (mm) | 14.0 |
| D (mm) | 13.0 |
